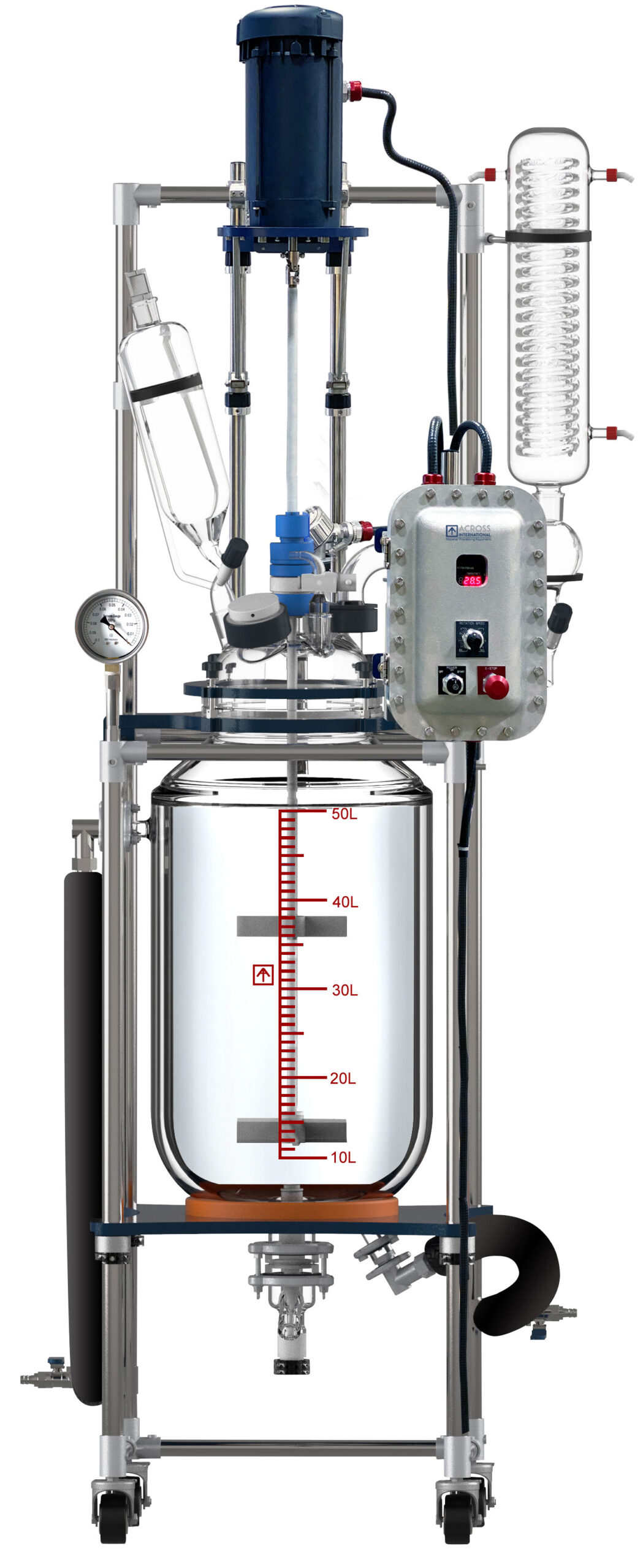

Ai 50L Jacket Reactor w/ Explosion-Proof Motor & Controller 220V


SKU: 4200862 Category: Tag:



 Electrical requirements
 220V 50/60Hz single phase

 Explosion-proof parts  (Made in USA)

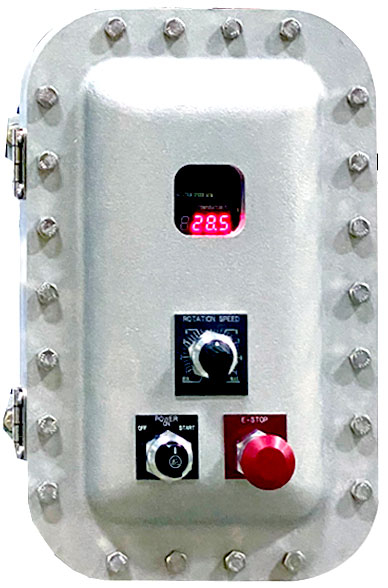

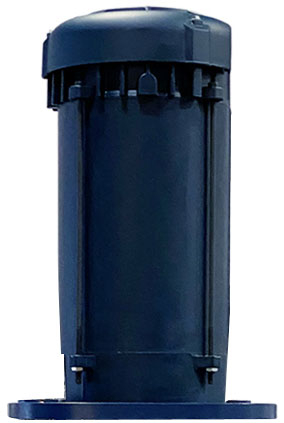

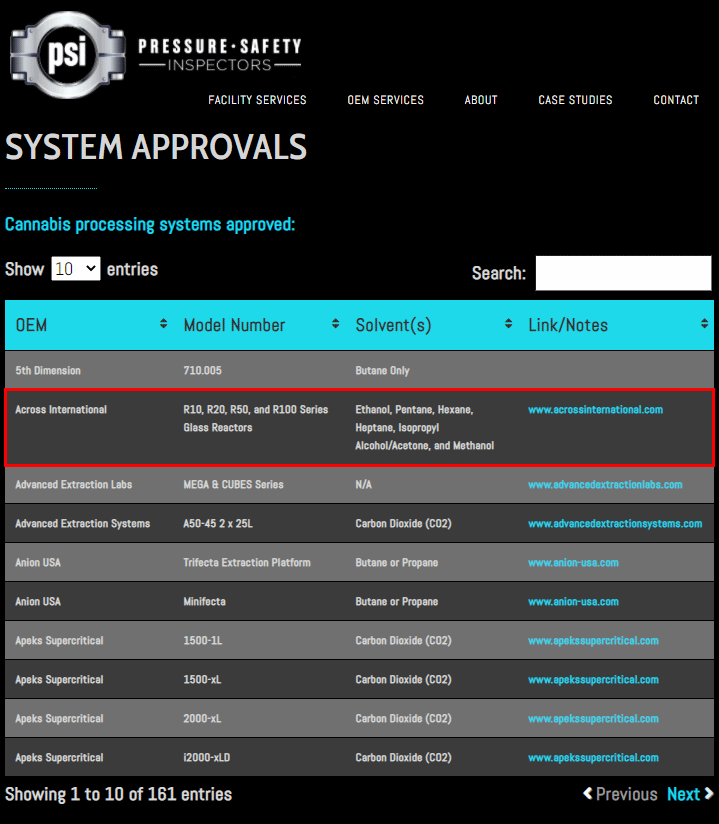

 * Explosion-proof motor: 3/4 HP, 560 watts * Explosion-proof controller and enclosure * Explosion-proof power connection and cable management    PSI peer reviewed, for use with Ethanol, Pentane, Hexane, Heptane,    Isopropyl Alcohol/Acetone, and Methanol

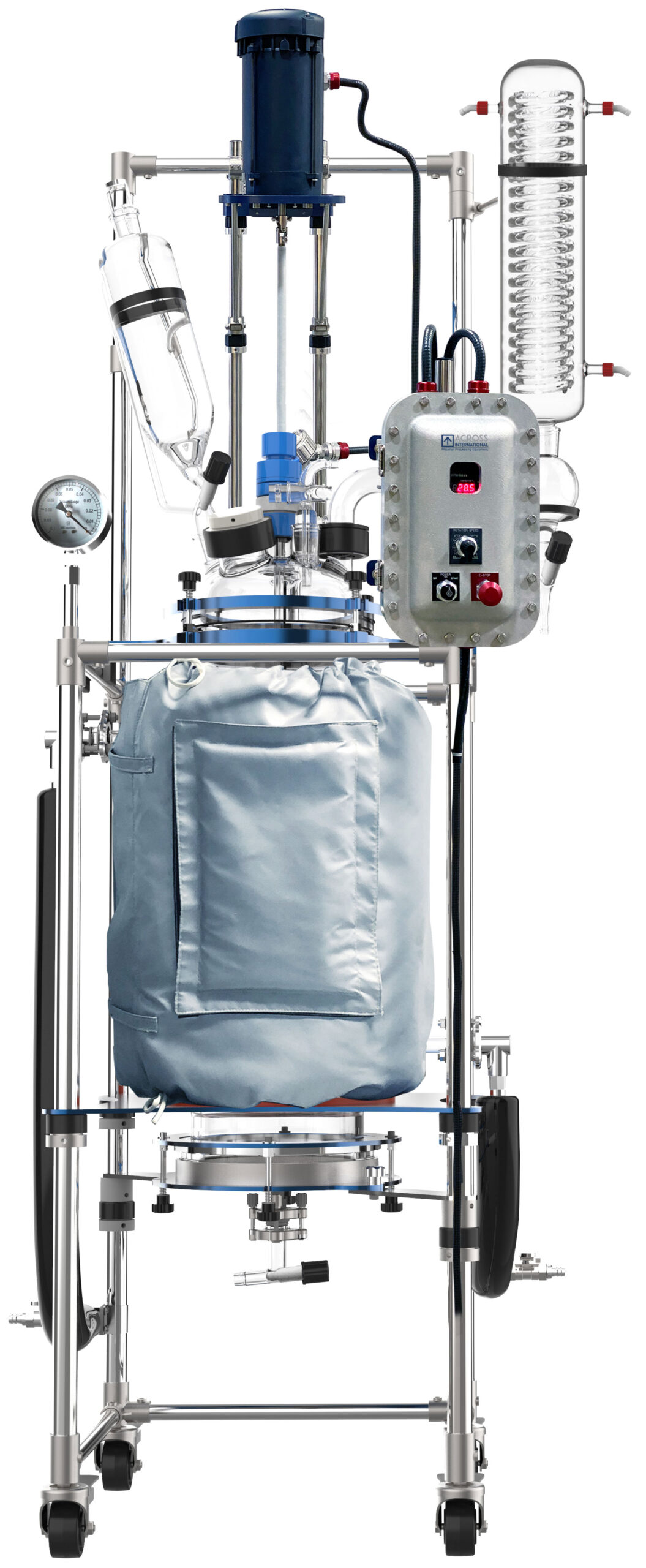

 Main vessel: 50 liters (13 gallons) Fluid jacket: 16 liters (4.2 gallons)

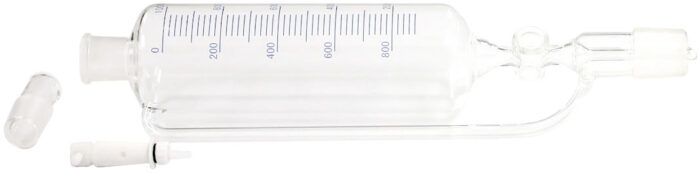

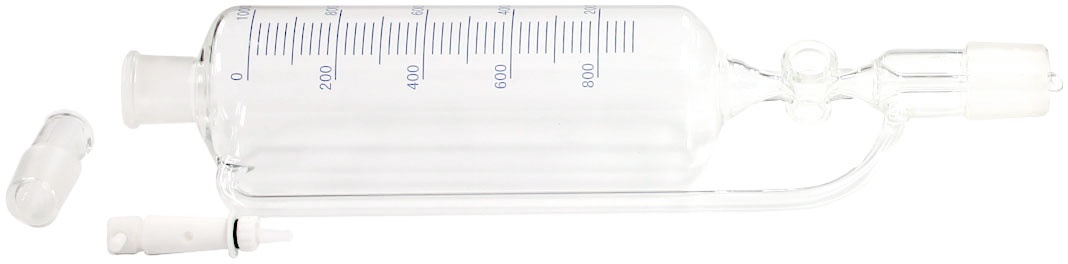

 Vessel, condenser, feeding funnel and receiving flask: borosilicate glass 3.3 Agitator: 304 stainless steel with PTFE coating Sealing gaskets: PTFE

 Glass vessel temperature range
 -80°C to 200°C (-112°F to 400°F)

 Vacuum & pressure
 Ultimate vacuum: < 700 Torrs Display: mechanical vacuum gauge Maximum fluid jacket pressure: 4.4 psi or 0.03 MPa  Weight and dimensions  Unit: 26 x 33 x 85" (WxDxH fully setup) Drain port ground clearance: 12.5" Shipping: 27 x 80 x 32" (WxDxH), 330 lbs  Warranty  One year
