Description
Model

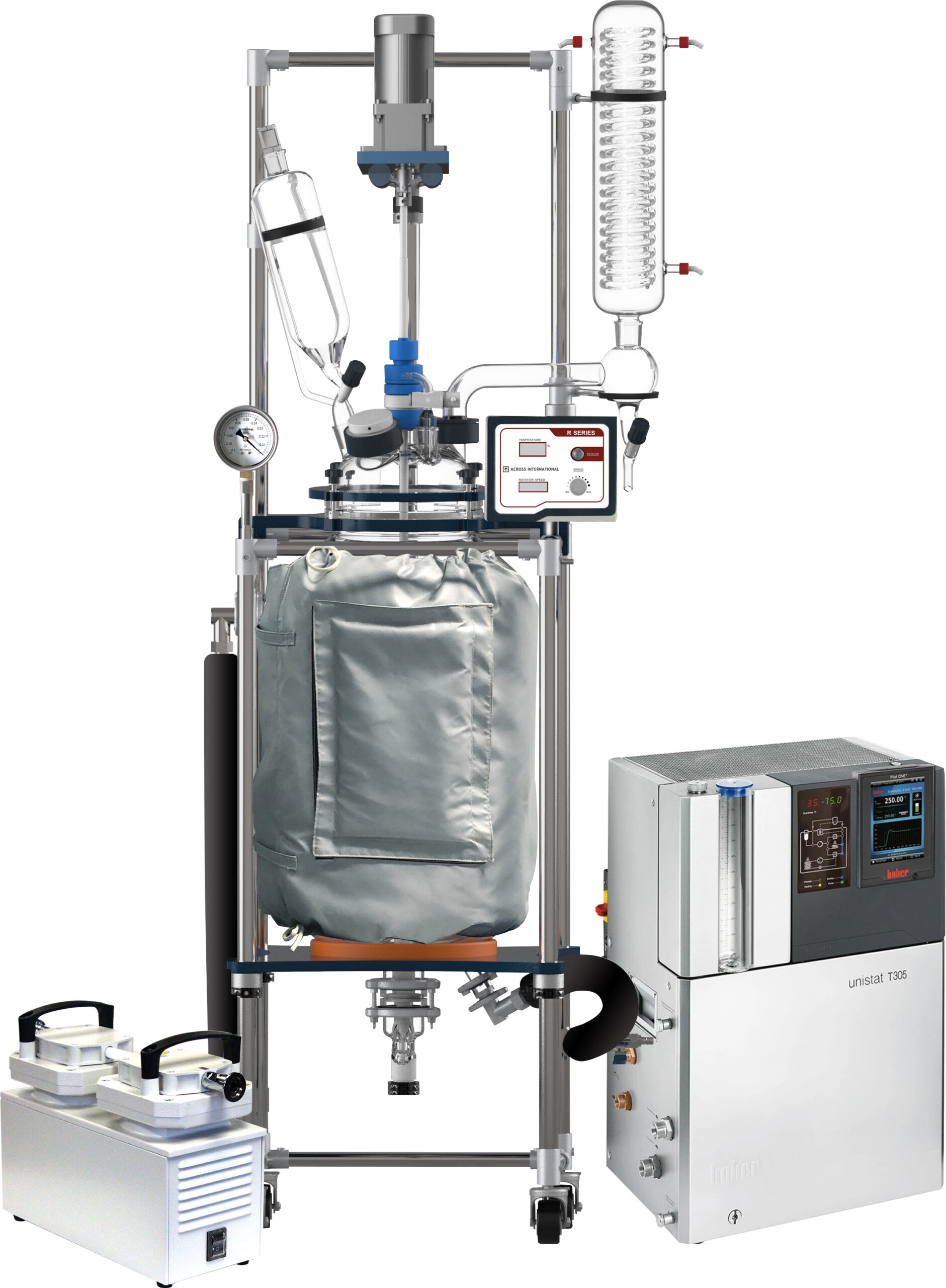

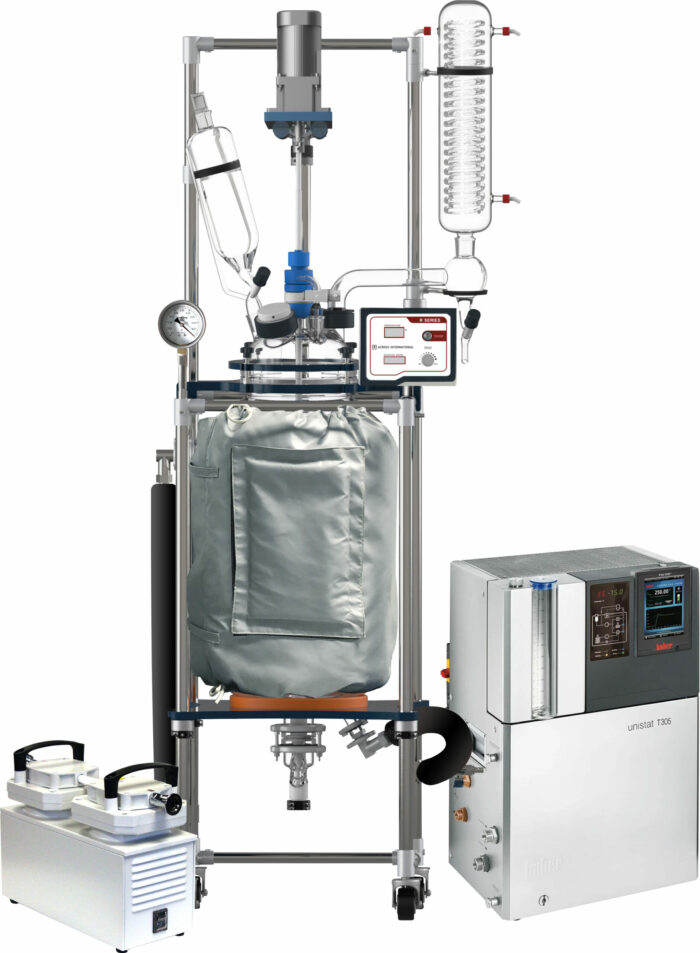

R50
Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase, 140W
Reaction glass vessel capacity
13 gallons (50L)
Cooling/heating jacket capacity
4.2 gallons (16L)
Glass material
High borosilicate glass 3.3
Rotation controller
Digital controller with variable frequency drive Rotation speed: 50 to 500 rpm
Maximum jacket pressure
4.4 psi or 0.03 MPa
Drain valve
Flush seal design with large opening and flat flange clamp
Agitator
Style: impeller Material: 304 stainless steel with PTFE liner
Condenser
Dual-cooling coil design
Funnel
Pressure equalizing
Vacuum gauge
Mechanical
Swivel caster
Four
Glass vessel temperature range
-110°F to 400°F
Vacuum level
< 700 torrs
Vacuum sealing
Glass or PTFE
Drain port ground clearance
12.5 inches
Reactor dimensions (WxDxH)
26 x 33 x 85"
Shipping dimensions
25 x 83 x 42"
Shipping weight
330 Lbs
Compliance
ETL tested to UL and CSA standards
