Description
Model

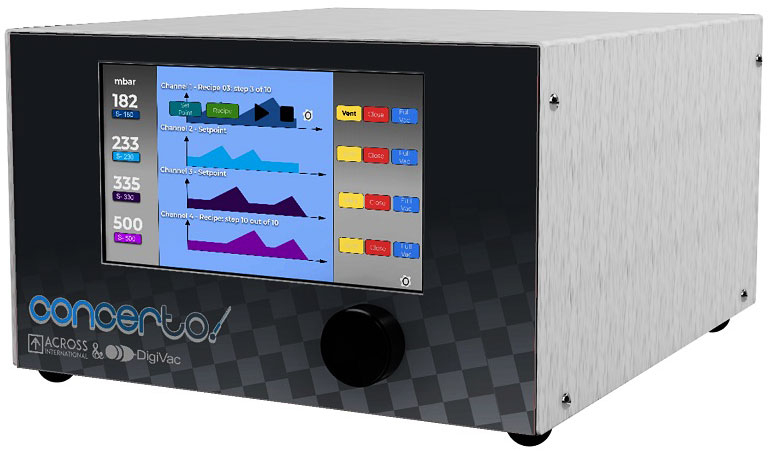

Concerto
Power
Auto sensing 110V/220V 50/60Hz
Performance
Range: 2 to 760 Torr Accuracy: ±5% of reading Integral sensor accuracy: ±2 Torr Integral sensor range: 0.5 to 775 Torr Display units: Torr, mTorr, mBar, kPa Time to convergence within 5% after disturbance: <30 seconds
Construction

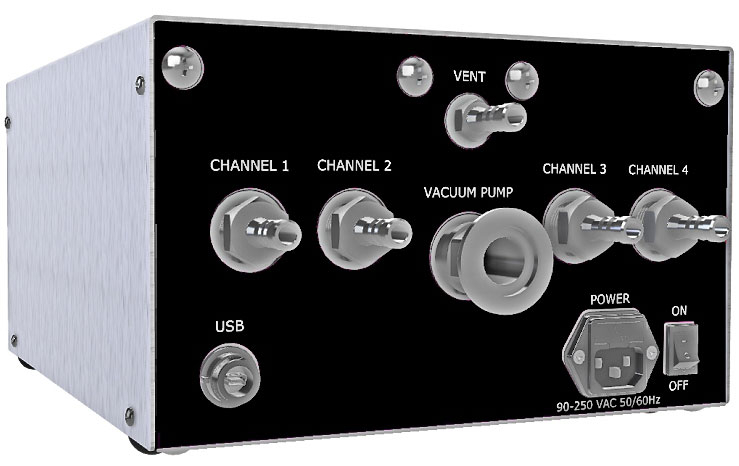

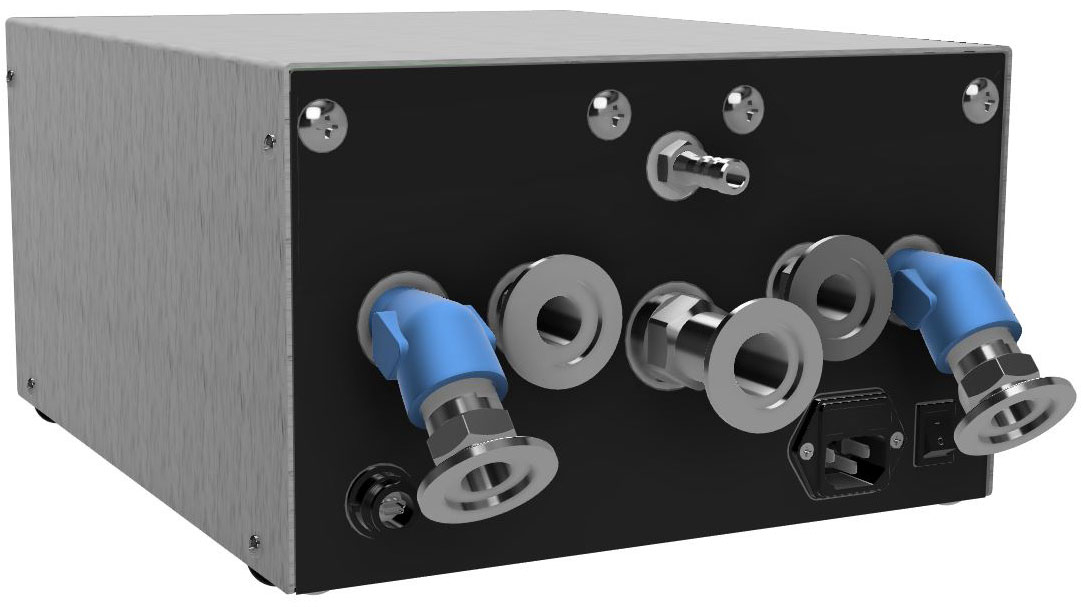

Inlet: 3/8" hose barb x 4 or KF25 x 4 outlet: KF25 x 1 Vacuum path orifice: minimum 12.5 mm Minimum bleed valve orifice: 10 mm Valves: wetted materials aluminum and Viton Integral sensor: isolated Piezo sensor | SEN-775i Integral sensor wetted materials: 316 stainless steel, isolated Set-points: quickly dial in set-point with control knob Vacuum fittings: staggered fittings on rear to enable either KF25 vacuum fittings or barb for rotovaps
Dual vacuum control
By both proportional throttle and bleed (vent to atmosphere)
4 channels
Individually control vacuum and bleed valves for each of 4 channel with dedicated isolated sensors
Output
Ability to be controlled remotely via USB for integration into larger systems
Recipes
Program ramps and holds with different durations and vacuum levels
Unit weight
25 Lb
Dimensions

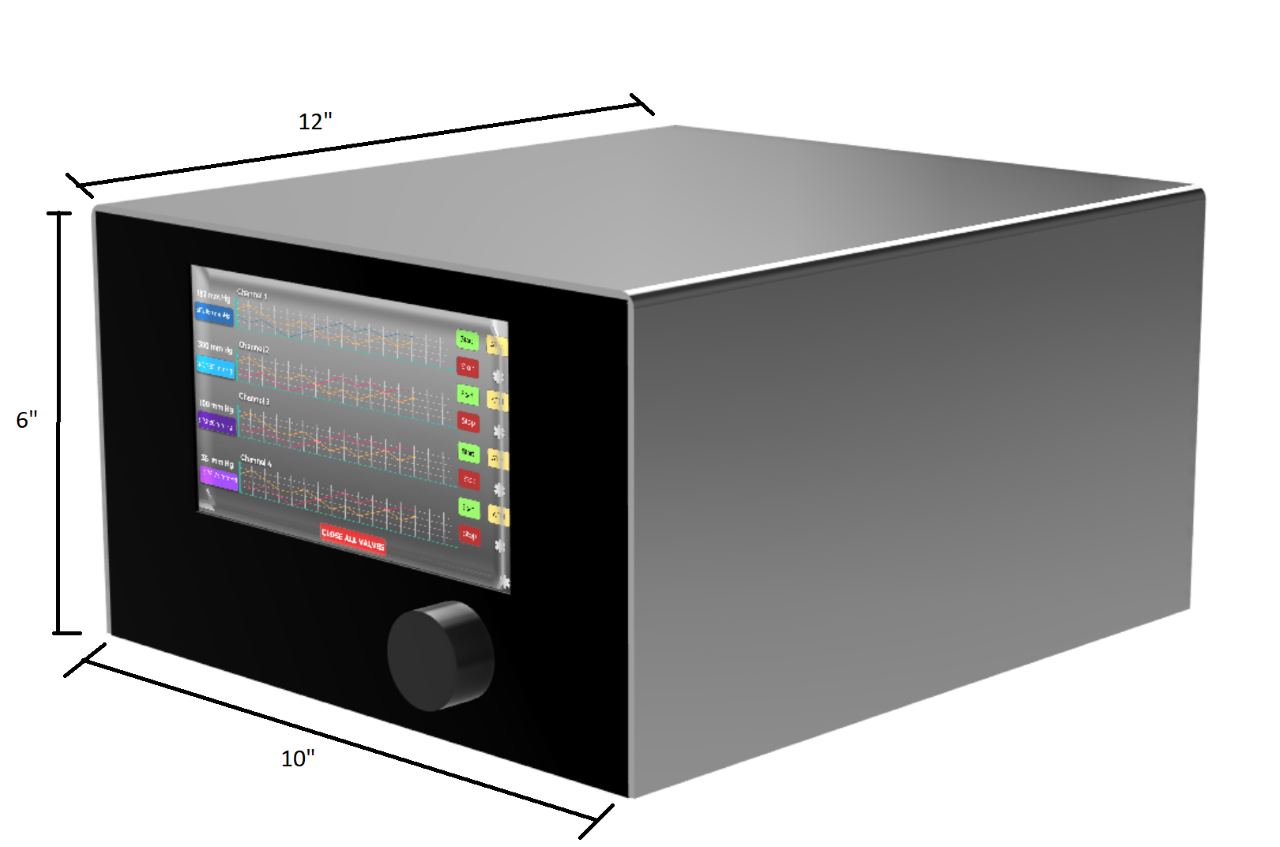

Unit: 10.25 x 12 x 5.25", shipping: 16 x 16 x 12 (WxDxH)
Compliance
RoHS & built to UL/CSA/CE standards (NOT certified yet)
Warranty
One year
Downloads

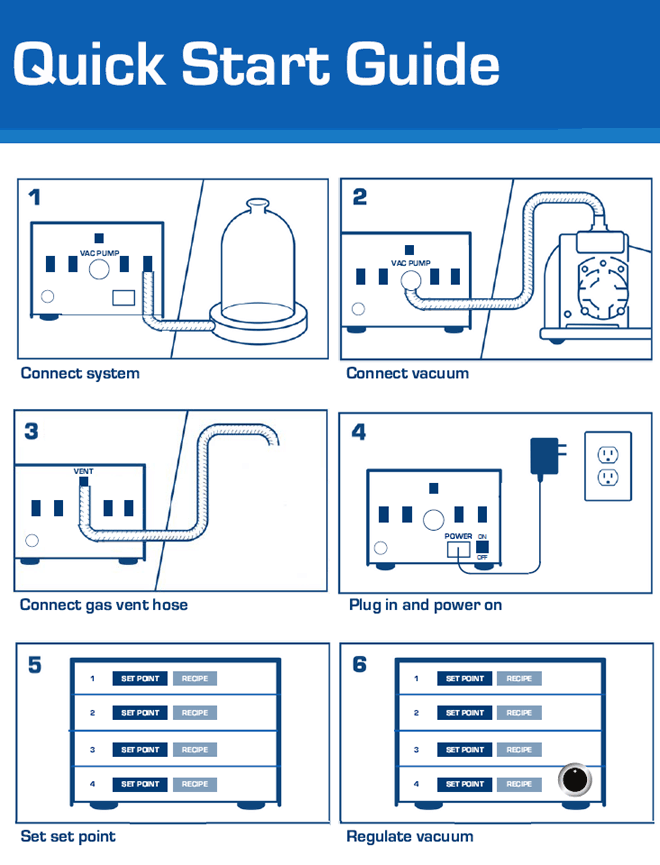

User's Manual, Quick Start Guide
