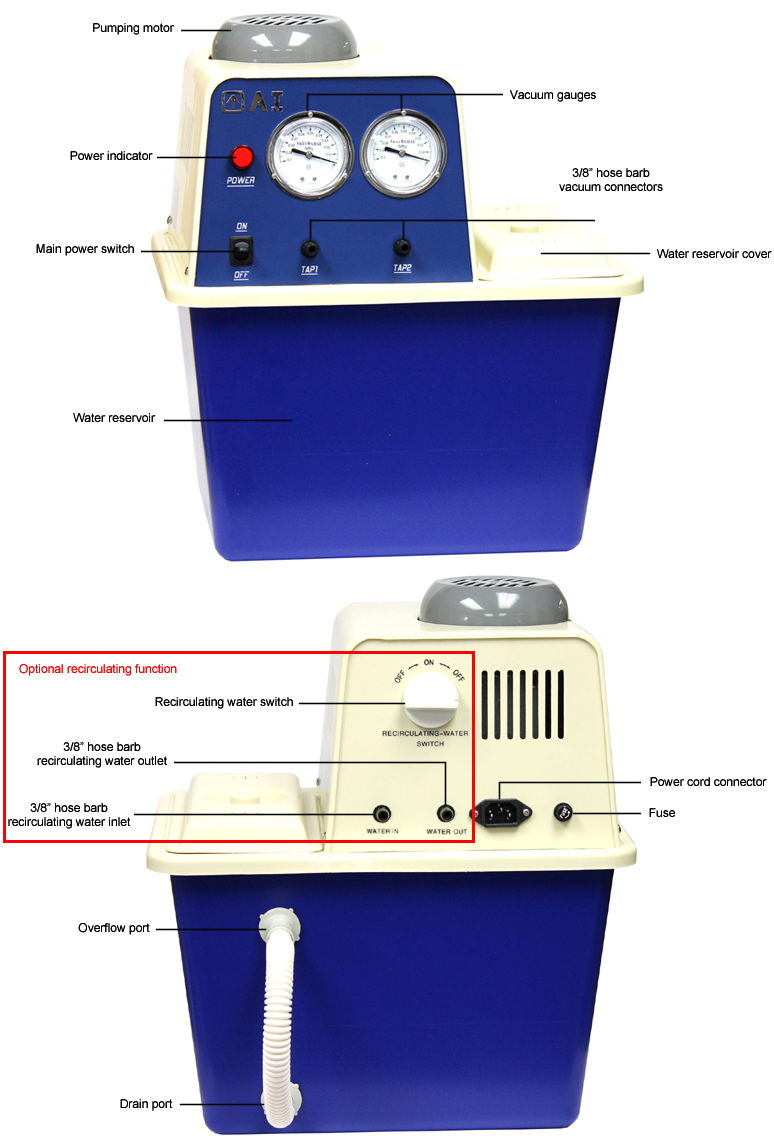

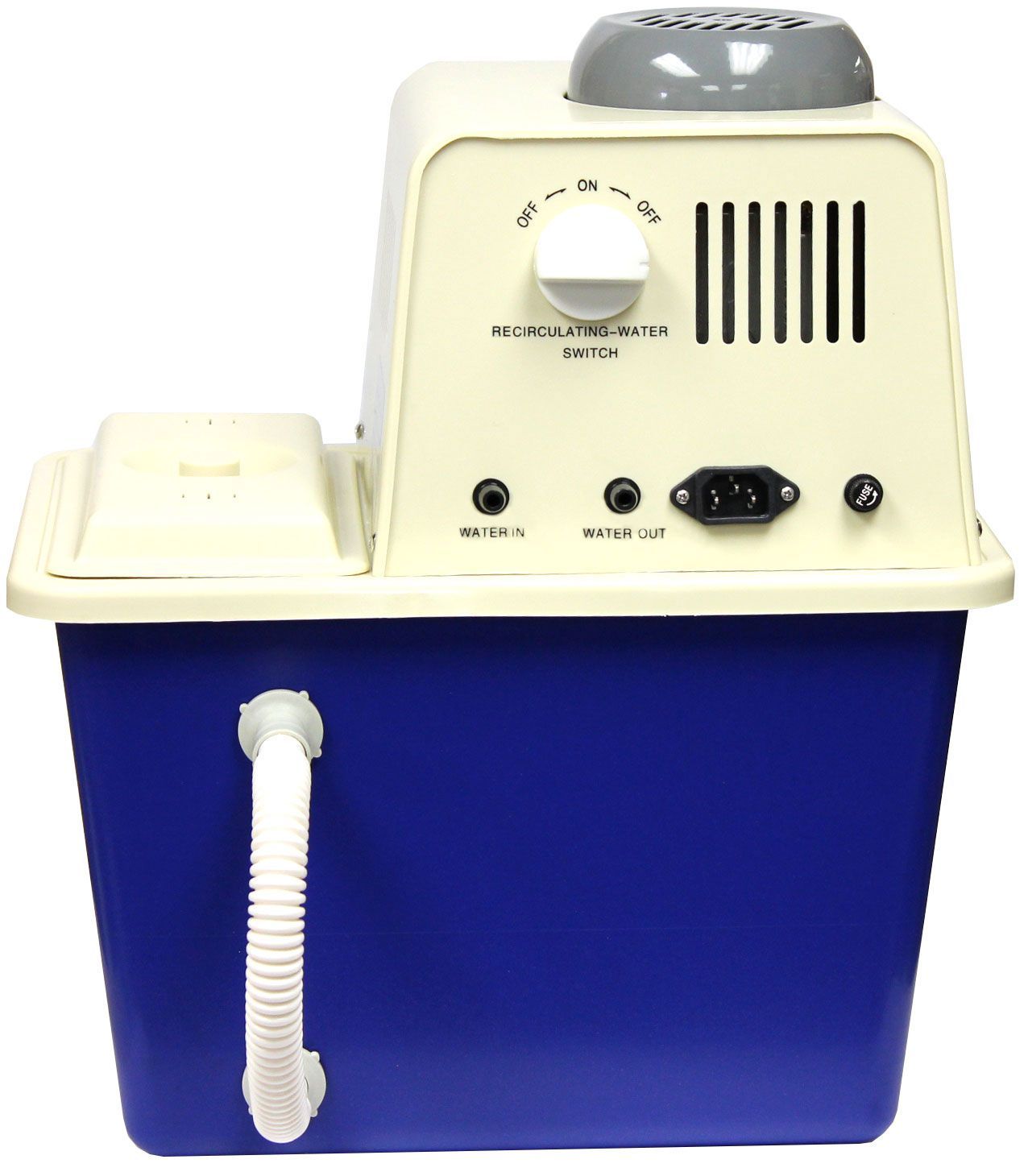

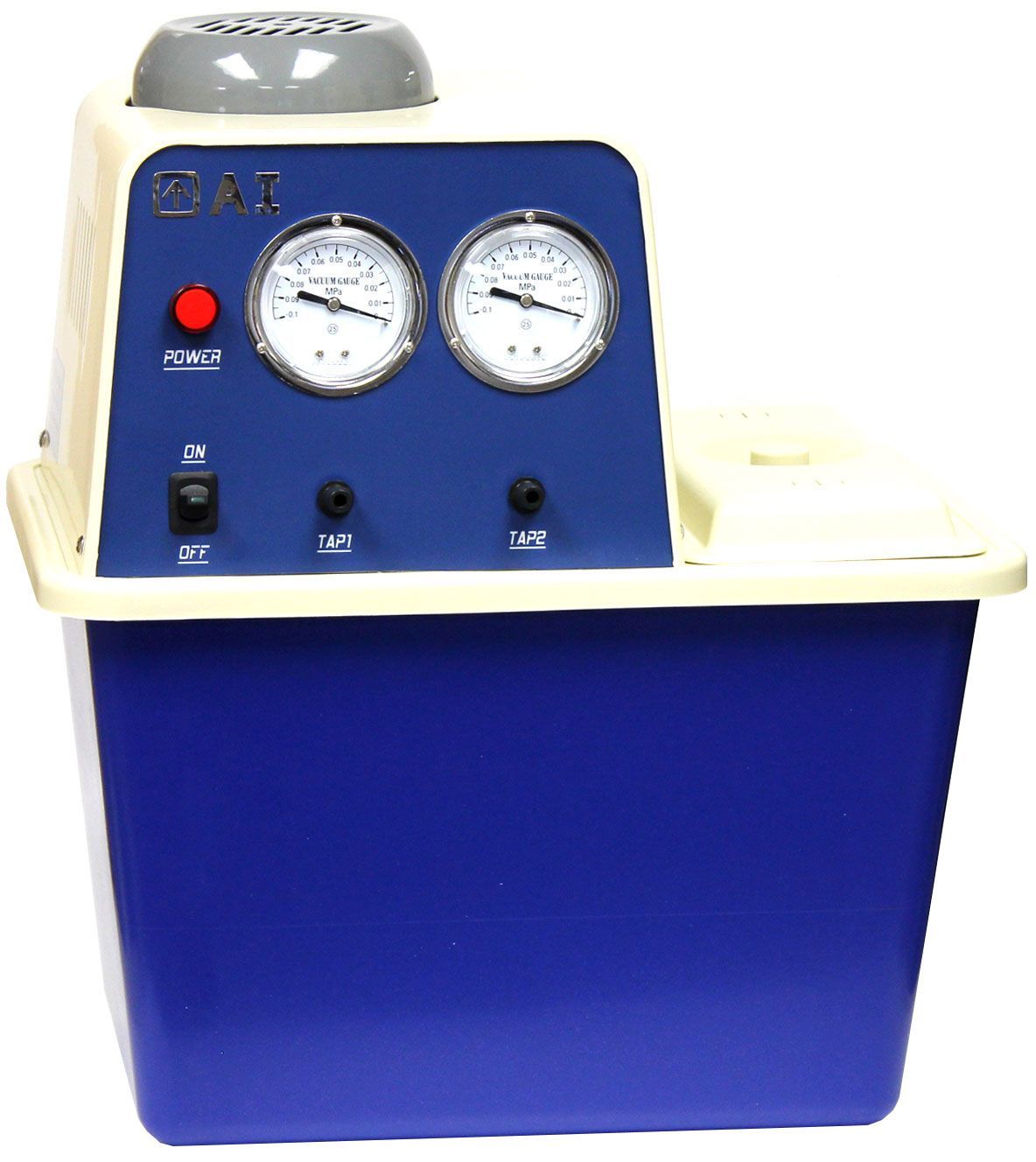

Ai WaterVac 0.7 cfm 2-Head Water Aspirator Vacuum Pump

650.00$

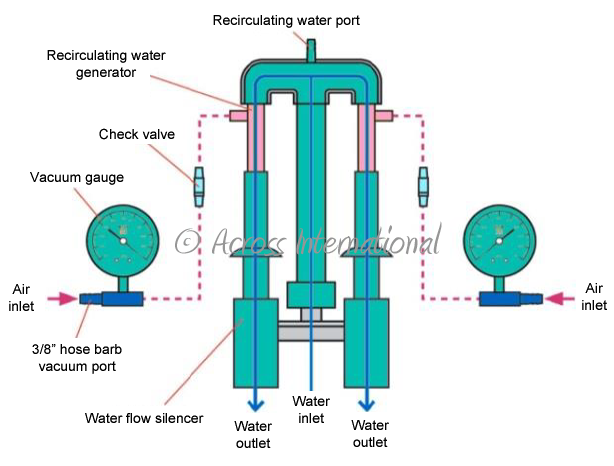

Ai WaterVac 0.7 cfm is an oil-free, portable, chemical resistant, 2-head recirculating water aspirator pump, with simplified maintenance, and no frequent and costly oil change. All major parts are made of PTFE, these economical vacuum pumps are perfect for tough lab applications.

SKU: 4200718 Category: Tag:

Description

 Electrical requirements
 110 Volts 60Hz single phase, 180 watts

 Pumping rate
 0.7 cfm

 Ult. vacuum pressure
 735 torr

 Vacuum inlet (vacuum connection)
 3/8″ hose barb x 2

 Water reservoir
 Capacity: 4 gallons / 15 liters

 Recirculating water

 Flow rate: 21 gallon/min Max head: 33 feet

 Adjustable vac./gas ballast
 No

 Safety
 Back-flow check valve

 Material

 Housing, water reservoir, 3 way tee: plastic Water jet: copper PTFE Check valve: plastic copper Pump body, pump vane: type 304 stainless steel Vacuum tubing: fluorine rubber

 Pump dimensions (WxDxH)
 15 x 12 x 17″

 Shipping dimensions (LxWxH)
 17 x 14 x 20″

 Pump weight
 24 Lb

 Shipping weight
 28 Lb

 Warranty
 One year
