Description
Reactor Type & Capacity
Flange Size (mm)
Support Frame Dimensions
W X D X H (in)
Approx. Height with Motor (in)
Clearance below drain valve
Max Jacket Pressure
(PSI)
Max Vessel Pressure
(PSI)
Max Vacuum
(Torr)

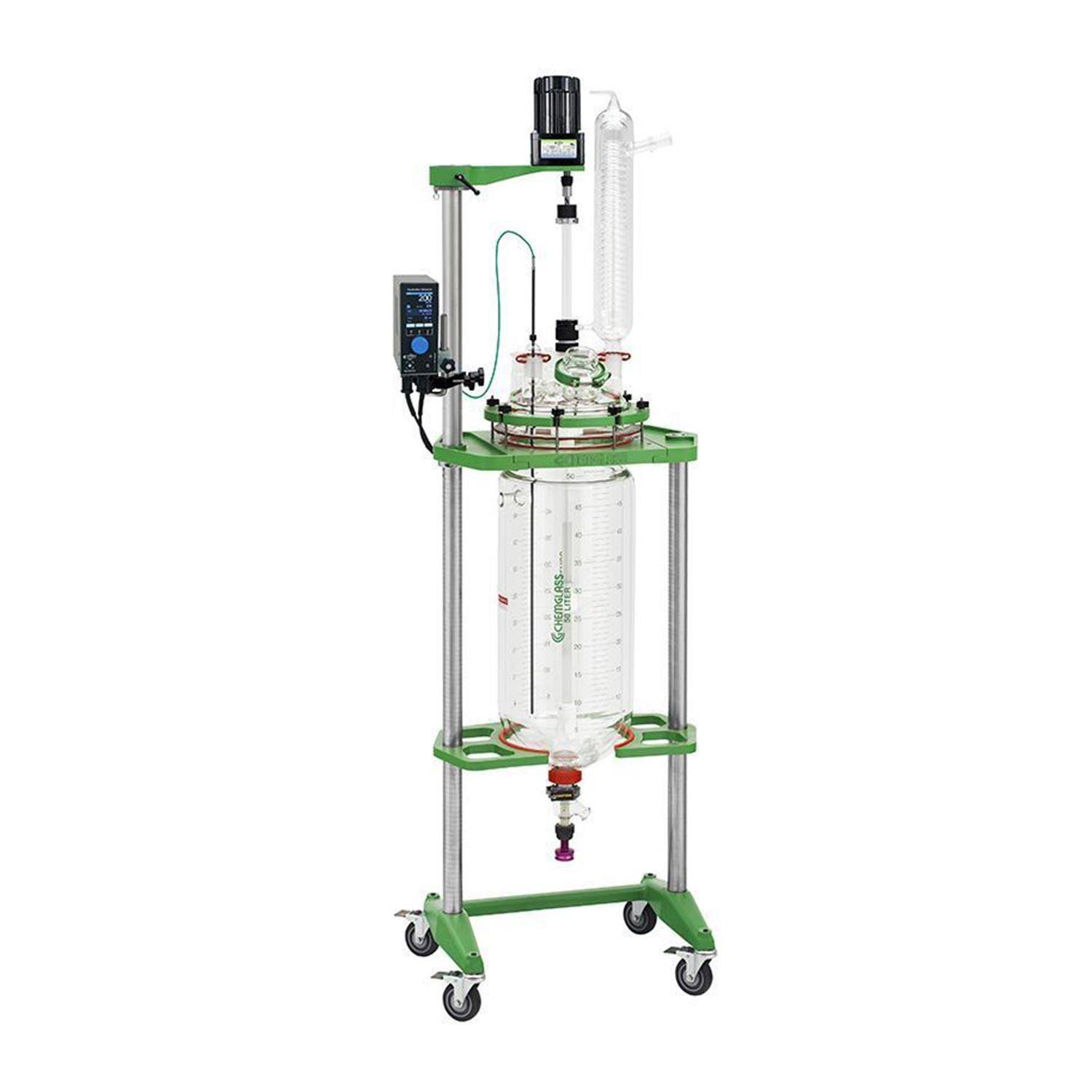

50L Jacketed Tall
300
28.25 x 20 x 83.5
87.3
16.2
12
10
2
50L Jacketed Squatty
400
28.25 x 20 x 75.25
79
15.6
12
10
2
