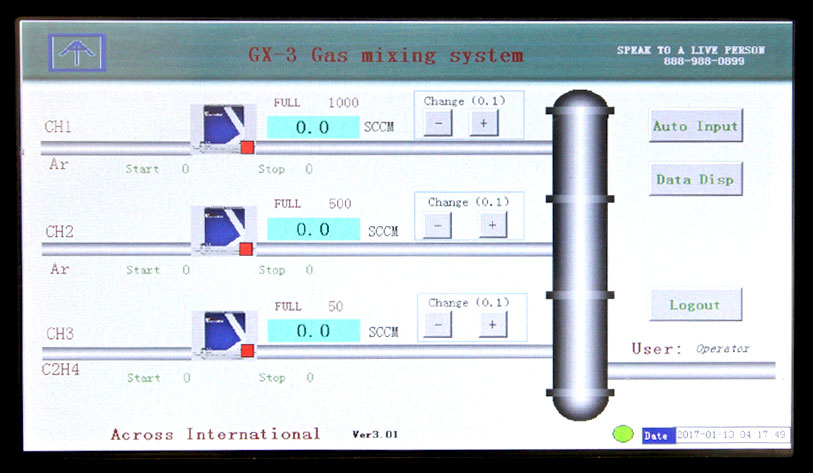

Digital Multi-Channel Gas Mixing System w/ Touch Screen Control

5,490.00$

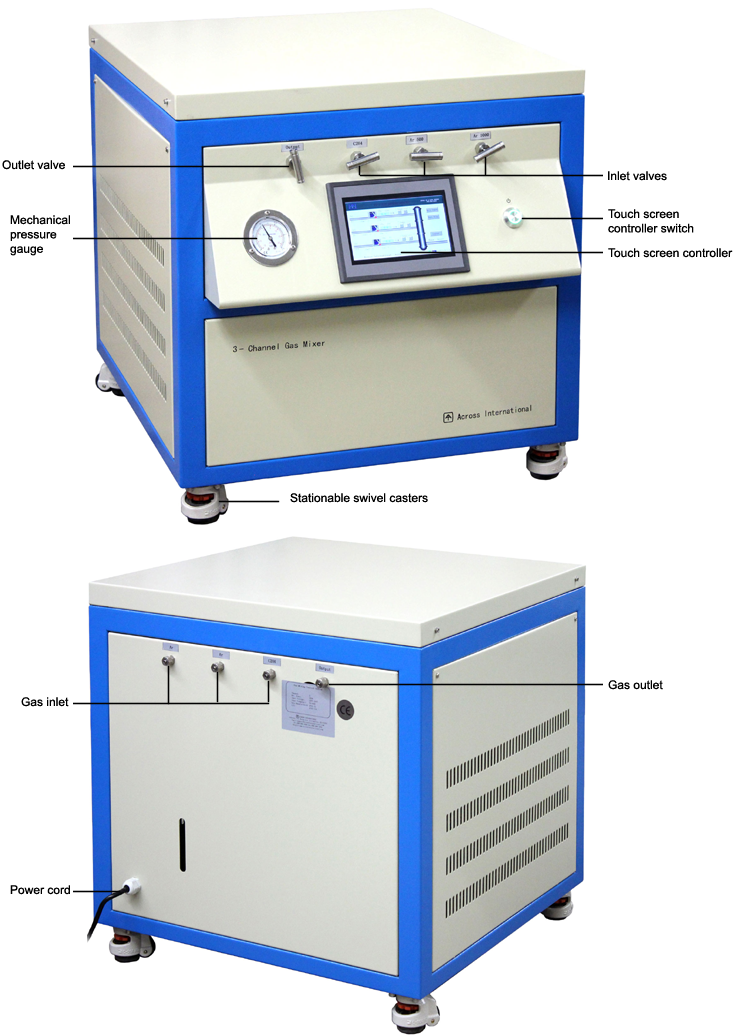

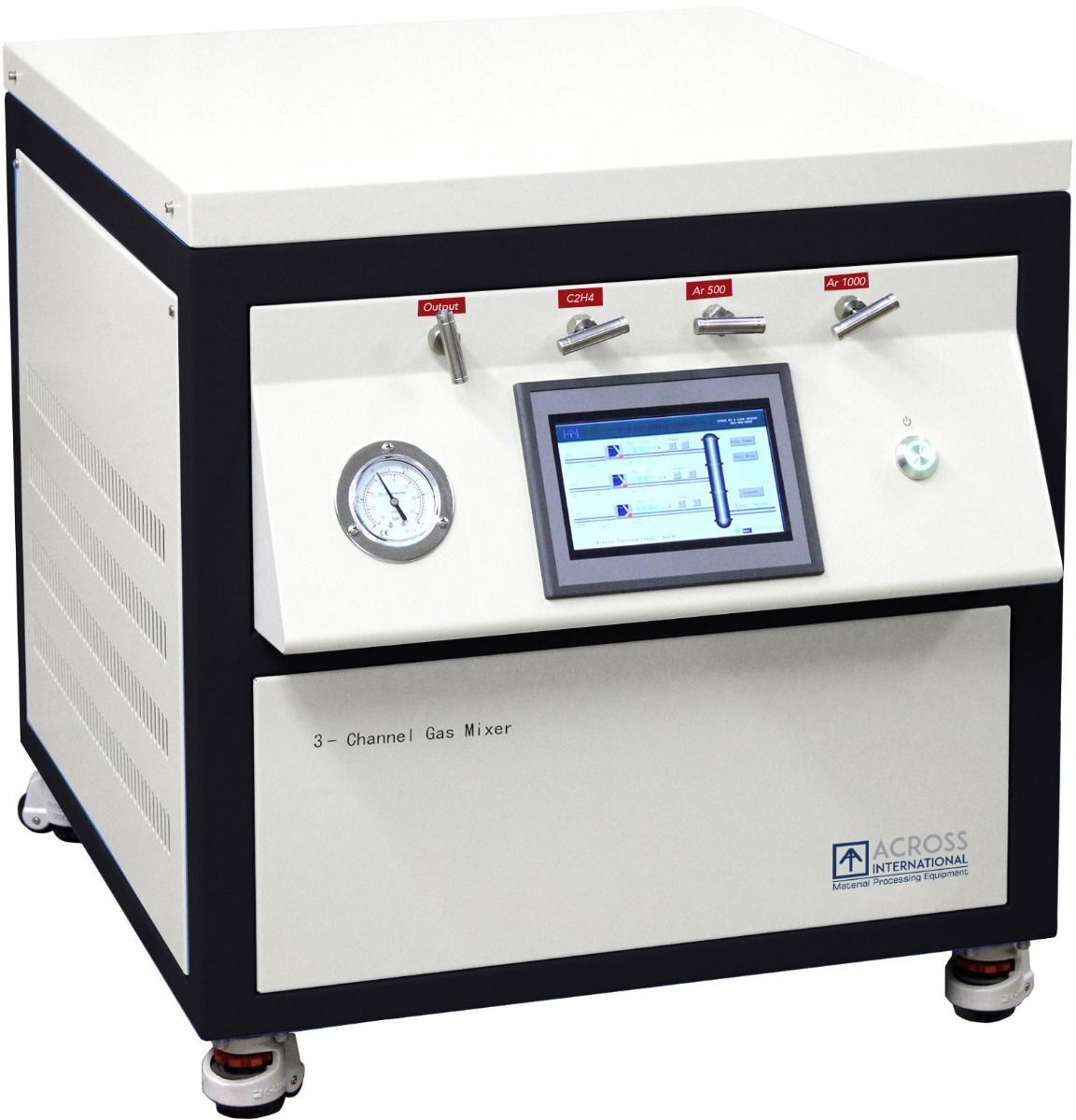

Ai GS series gas control systems are designed for controlling multiple types of gases flowing through vacuum sealed tube furnaces at lower cost. These gas control systems come in heavy duty mobile carts, on which tube furnaces can be placed. The front panel displays flow rate with adjustable valves. Combining with our tube furnaces, they can be used as PE/CVD systems or annealing furnaces to study the gas influence to different materials.

SKU: 4200440 Category: Tag:

Description

 Electrical requirements
 110V or 220V 50/60Hz 1-PH 18 watts

 Mechanical pressure gauge of gas tank
 0-0.02 MPa

 Vacuum needle valve
 Yes

 Connector
 1/4″

 Accuracy
  /- 1.5% of F.S. (full scale)

 Linear accuracy
  /- 0.5 to 1.5% of F.S. (full scale)

 Repeatability
  /- 0.2 of F.S. (full scale)

 Maximum pressure
 3 MP

 Mobile cart capacity
 400 Lb

 Unit weight
 180 Lb

 Shipping weight
 250 Lb

 Unit dimension
 24 x 24 x 26″ (DxWxH)

 Gas tank
 304 SST (Ø4″ x 6″)

 Maximum gas temperature
 100°C or 212°F

 Download
 Product brochure
