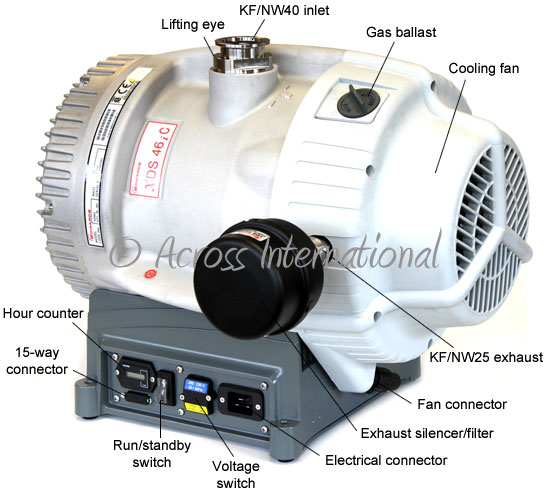

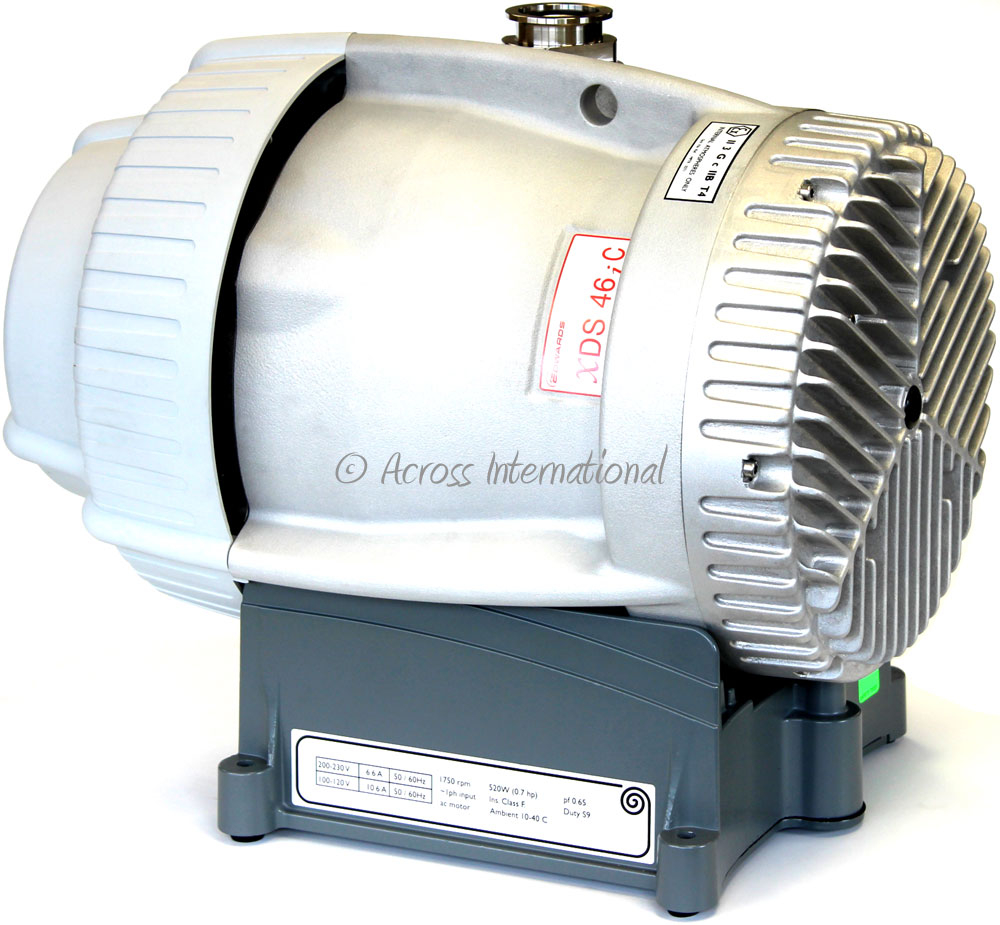

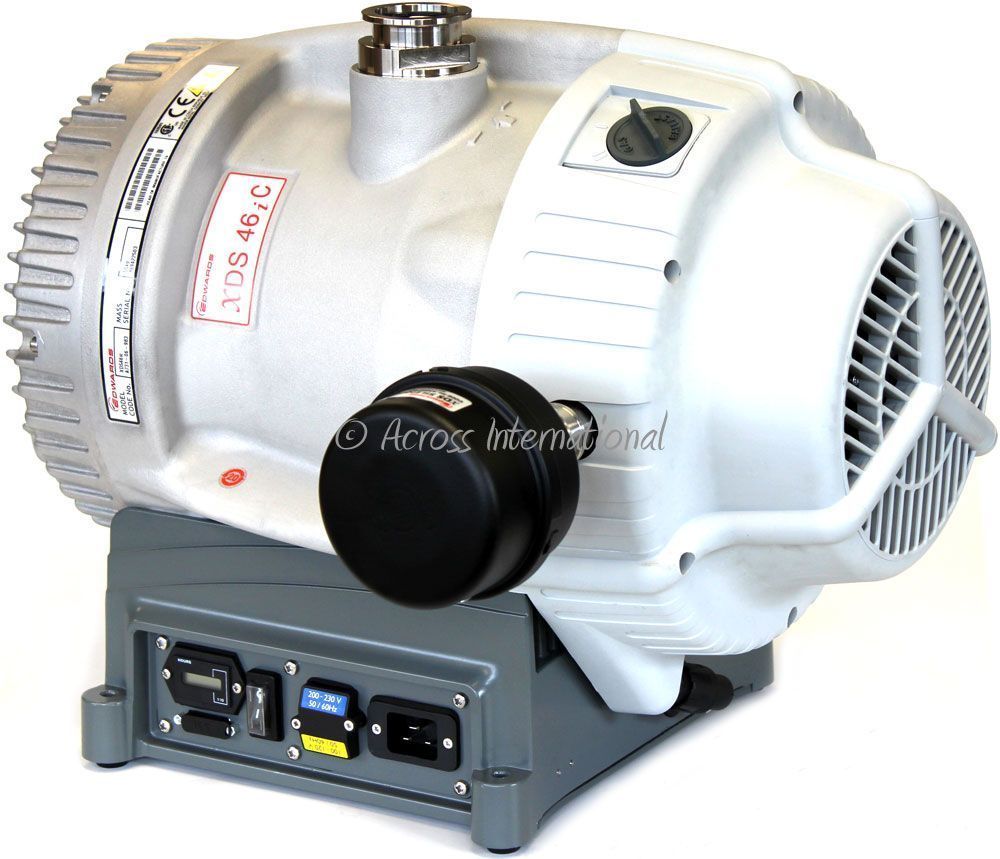

Edwards XDS46iC 35cfm Chemical-Resistant Scroll Pump w/ silencer

12,948.72$

Overview

SKU: 4200753 Category: Tag:

Description

Power
100-120V or 200-230V switchable

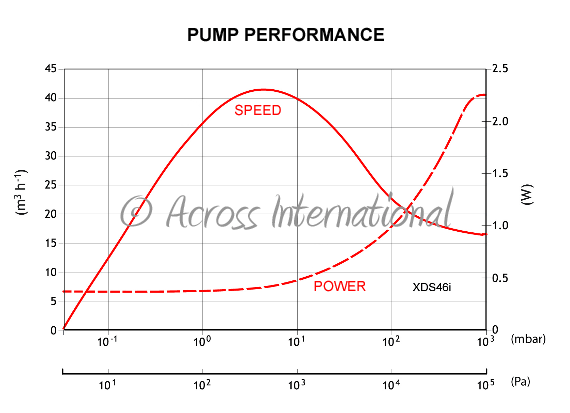

Displacement 50 or 60HzPeak pumping speed 50 or 60Hz
60 m3h-1 / 35 ft3min-140 m3h-1 / 23.5 ft3min-1

Ultimate vacuum (Total pressure)
5 x 10-2 mbar / 4 x 10-2 Torr

Max continuous inlet pressure
40 mbar / 30 Torr

Max continuous outlet pressure
0.2 bar gauge / 2.9 psig

Max allowed inlet and GB pressure
0.5 bar gauge / 7 psig

Motor power
0.52kW

Power connector
IEC EN60320 C19

Nominal rotation speed
1750 rpm

Weight
48 kg / 105 lb

Inlet / exhaust flange
NW40 / NW25

Noise and vibration level
55.4 dB (A), <4.5mms -1 (rms) Leak tightness (static) <1 x 10-6 mbar ls-1 Operating temperature range 10 to 40 °C / 50 to 104 °F Compliance UL, CE, ATEX
