HiVE30™ Thin Film Distillation System – Single Stage, 0.3 m2

$85,000.00

Lab Society has partnered with HVE to bring a revolutionary redesign of the hybridized wiped/thin-film evaporator capable of fast and precise distillation, translating to savings in time and resources.
This elegant and modular system was engineered with flexibility and ease of use in mind. The HiVE30™ is here to claim its place as the most powerful of any TFD/WFE in its class.
“Using the HVE Thin Film on an everyday basis has made our quality and quantity of distillate increase. This machine is a workhorse. The ease of use makes it a must for any lab. Highly recommend!” – @thepacannabisclub

SKU: 4201607 Category:

Description

HIVE30™ THIN FILM DISTILLATION SYSTEM – SINGLE STAGE, 0.3 M2

  • 0.3 m2 surface area
  • 2-6 LPH final distillation feed rate;
  • 2-10+ LPH volatile stripping feed rate
  • 230V single phase 6400 watt heat bands, extreme thermal flux density
  • 304L stainless steel evaporator body designed for maximum thermal transfer

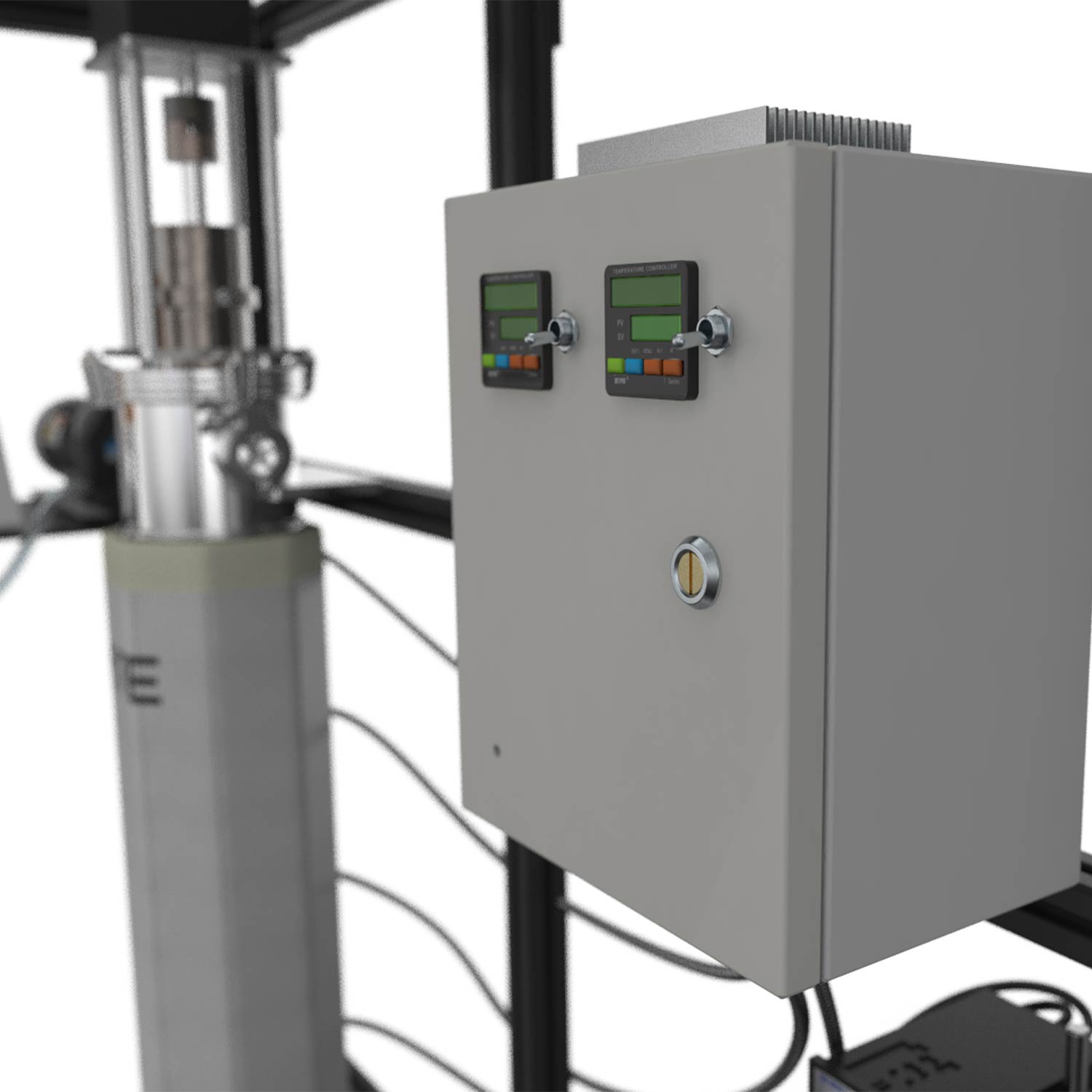

  • Heat is provided via four (4) electronic heat bands which are precisely controlled by a single, commonly mounted PID for full temperature control without the use of expensive, dangerous heating oils.
  • High surface area stainless steel, dewar-style cold trap
  • Quick swap internal condenser and stripping cone with condenser stand
  • Small footprint (36” x 24”) customizable modular frame with adjustable shelves for existing auxiliary peripherals
  • Teflon-bladed wiper design with six (6) vectored blades allows precise material flow and residence time
  • The most effective and affordable in their class, these systems feature a virgin PTFE wiper basket inside of a six-inch 316 Stainless Steel evaporator body.
  • Universal quick disconnect fittings allows for quick setup and break down
  • Wiper basket is 6” wide by 21” long; longest 6” TFD/WFE on the market

Modular Processing Options:

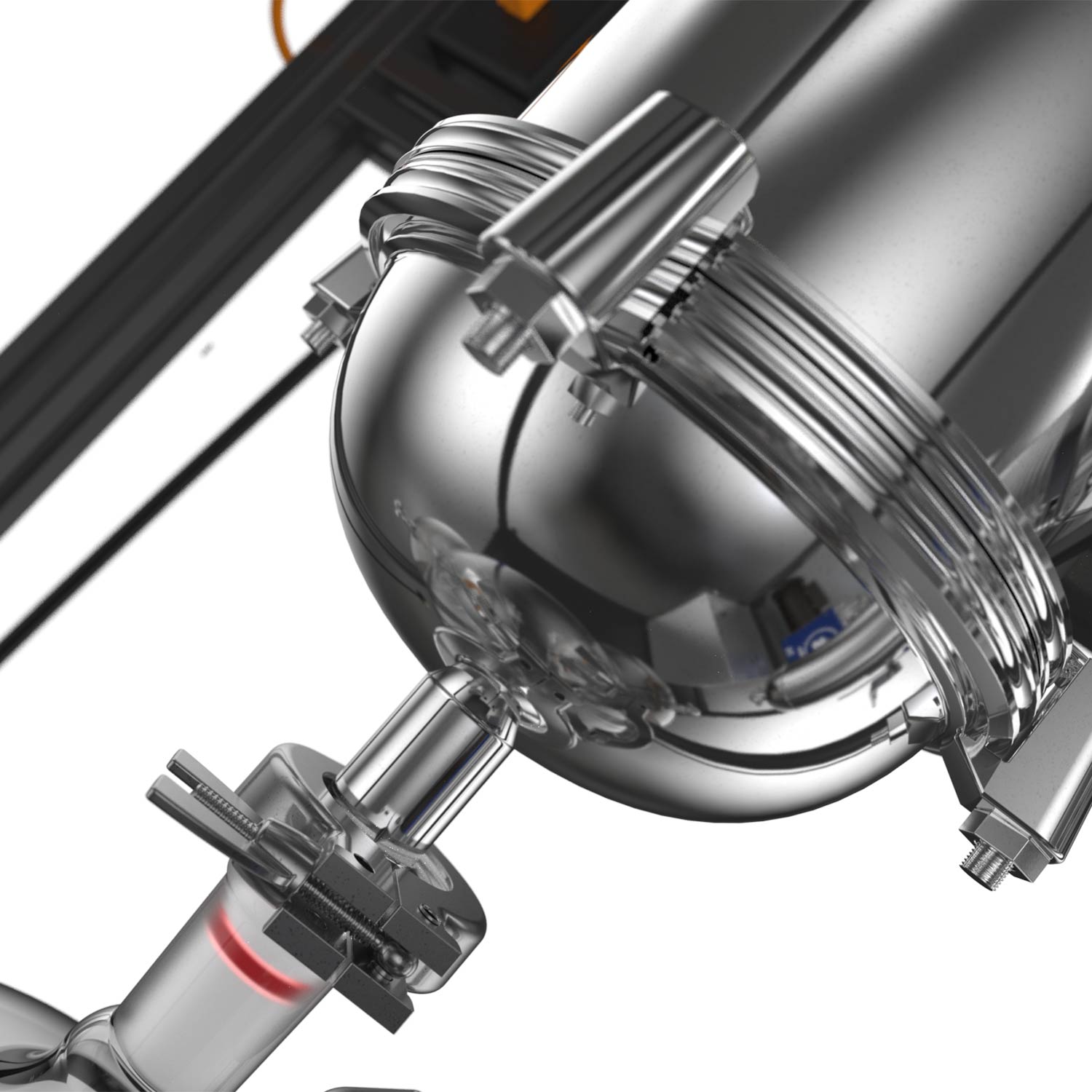

Choose between volatile stripping at higher rates vs. cutting/polishing with higher quality fractions. Proprietary quick release fittings allow the internal condenser or stripping cone to be swapped within minutes.

Short Path Thin Film Operation (Internal Condenser Installed)

  • Best for medium-to-heavy compound stripping and polishing
  • Minimizes vapor path to maximize condensation efficiency

External Condenser Thin Film Operation (Stripping Cone Installed)

  • Best used for volatile stripping, higher vapor pressure compounds
  • Allows lighter compounds to exit evaporator as vapor path is extended
  • No need for recirculating heater for internal condenser

Upgrades

Continuous Upgrades:

  • Discharge Pump Kit (DPK)- adds two (2) discharge pumps to the system; coupled with the FPK makes unit continuous

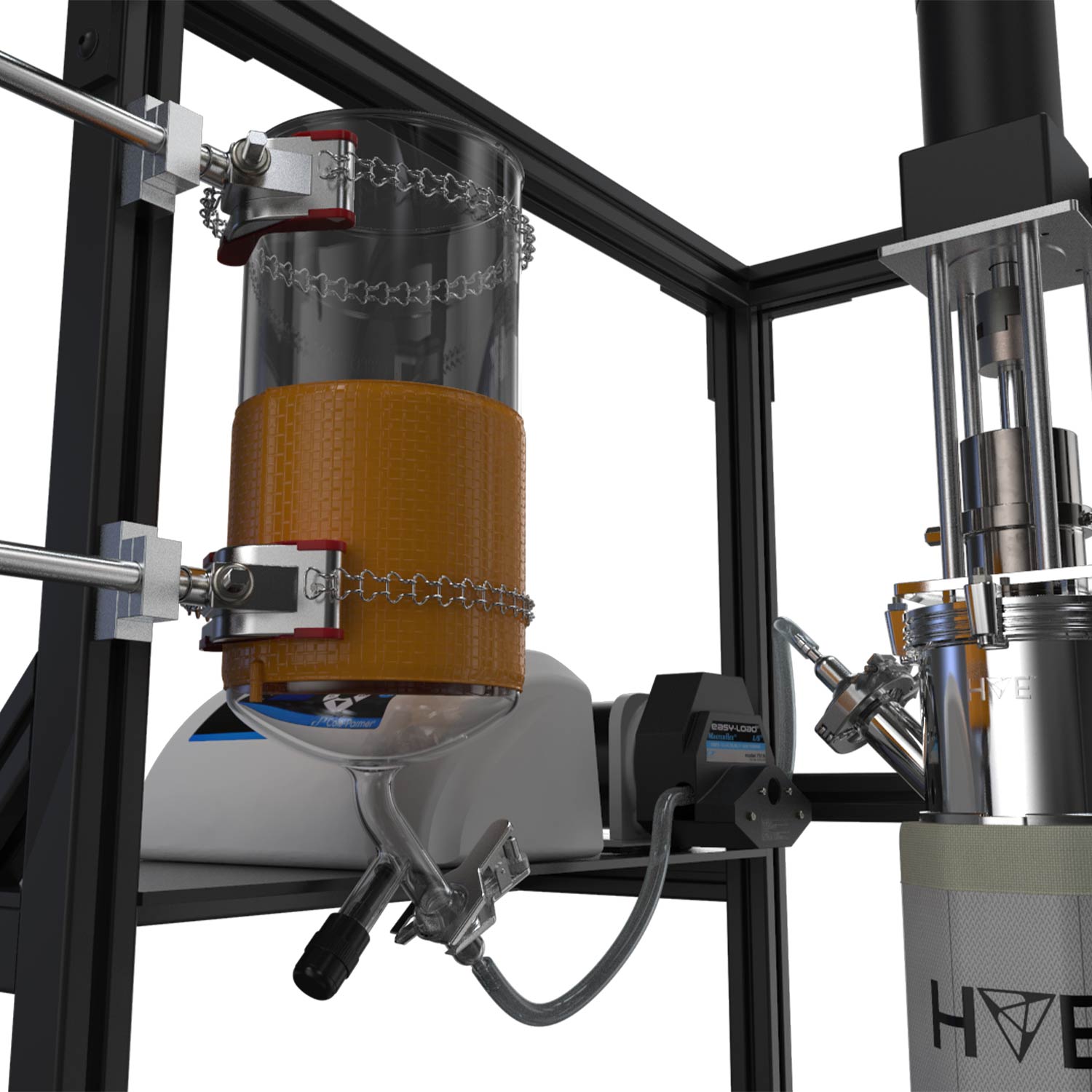

  • Feed Pump Kit (FPK)- adds a feed pump to the system; coupled

Pressure & Speed Control:

  • Booster Pump Kit (BPK)- increased vacuum flow rates during stripping or high-vacuum distillation operations

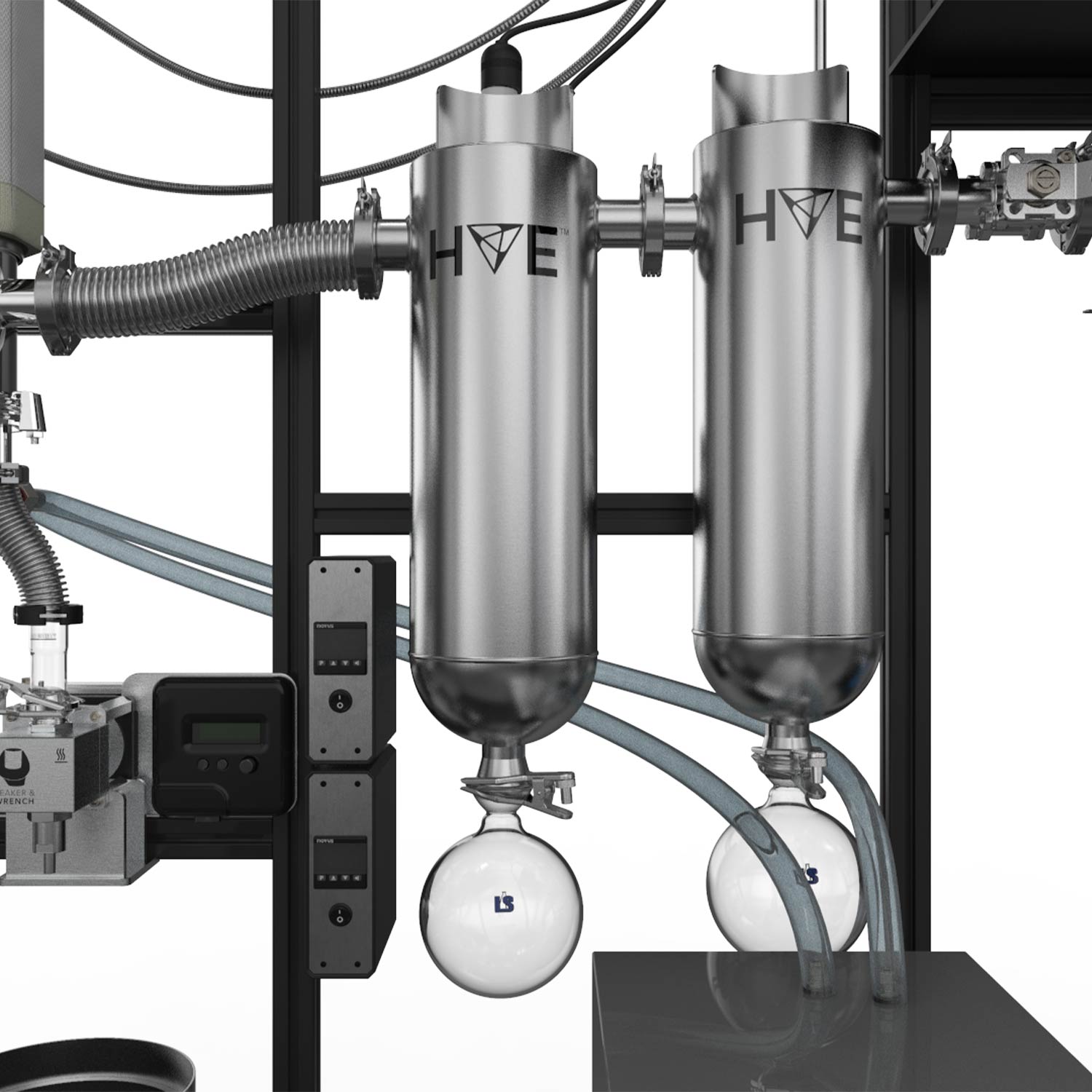

  • Dual Cold Trap- improved vacuum pump protection and/or stripping options
  • Dual Pump Manifold Kit (DPMK)- adds a pump cart and manifold to quickly switch between vacuum pumps
  • Pressure Control Kit (PCK)- adds a precision pressure controller to accurately control high vacuum to atmospheric pressures

Competitive Advantage:

Customizable Processing Paths via Unique Configuration Options

The dual-port design allows for co-current and concurrent vapor path configurations, and a reversible wiper motor with vectored blades allows for tailored material residence times.

Fast & Easy Assembly and Cleaning

One tool, one person, 10 minute assembly or breakdown reduces cleaning and system downtimes, increasing your bottom line. Clean with your desired solution, while at high temps, without damage to the evaporator body and/or components.

Faster Cycle Times via High-Quality Materials

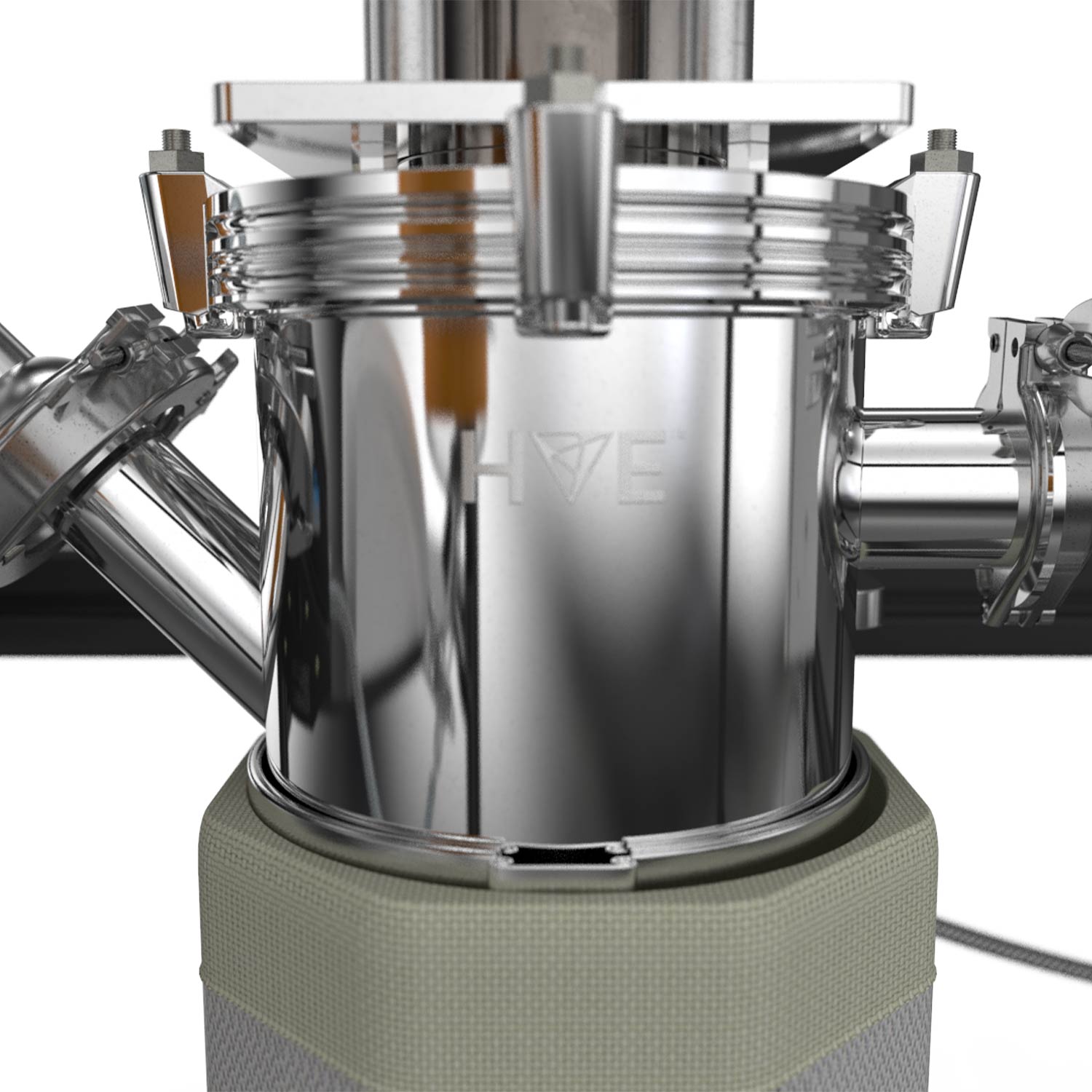

Stainless steel construction allows for quick heating and cooling, allowing for accelerated system startup and cooldown cycles. Proprietary Aerogel insulated thermal wrap ensures consistent temperatures while also increasing heat retention resulting in reduced power costs and increased performance.

High Expandability & Portability

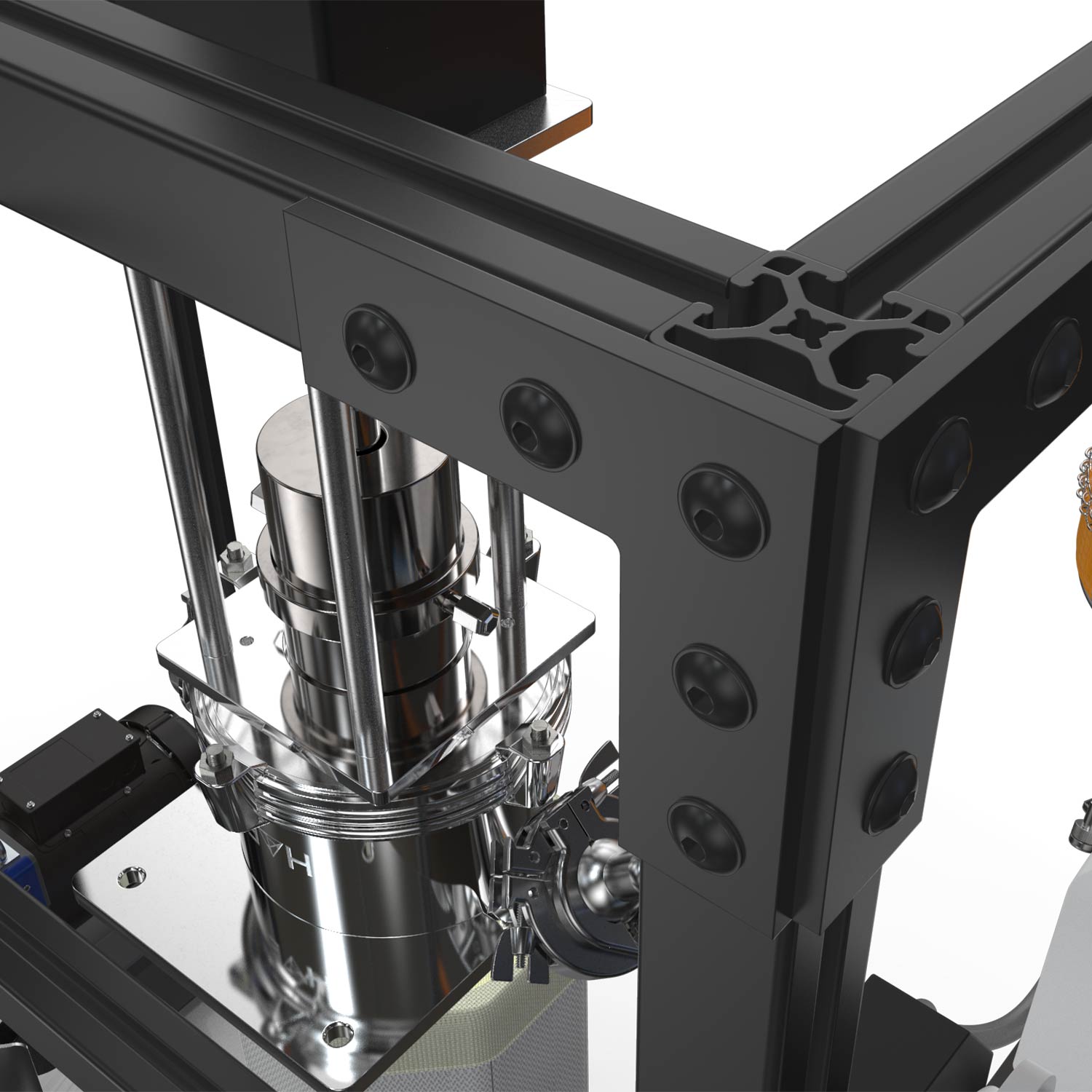

Modular 80/20 frame allows for aftermarket upgrade options and mounting auxiliary gear. Locking castor wheels allow for quick relocation with secure placement.

EliteLab and Bluetooth compatible.

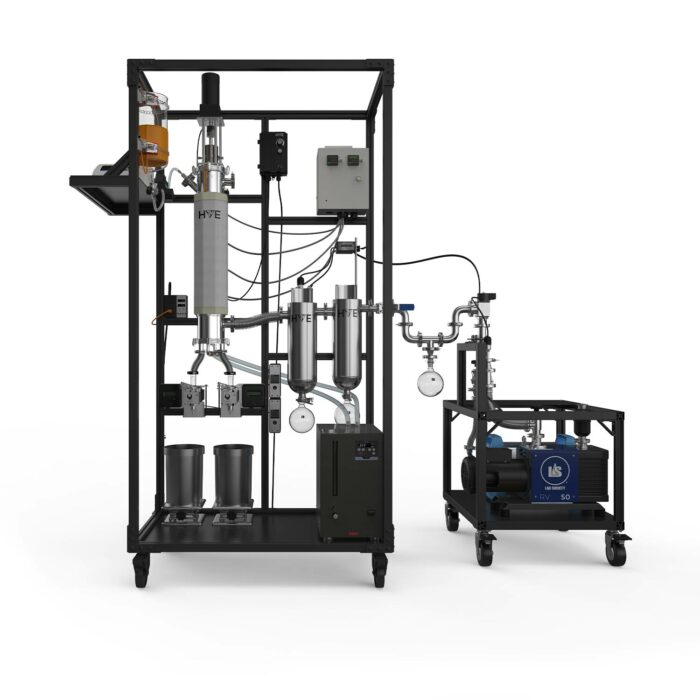

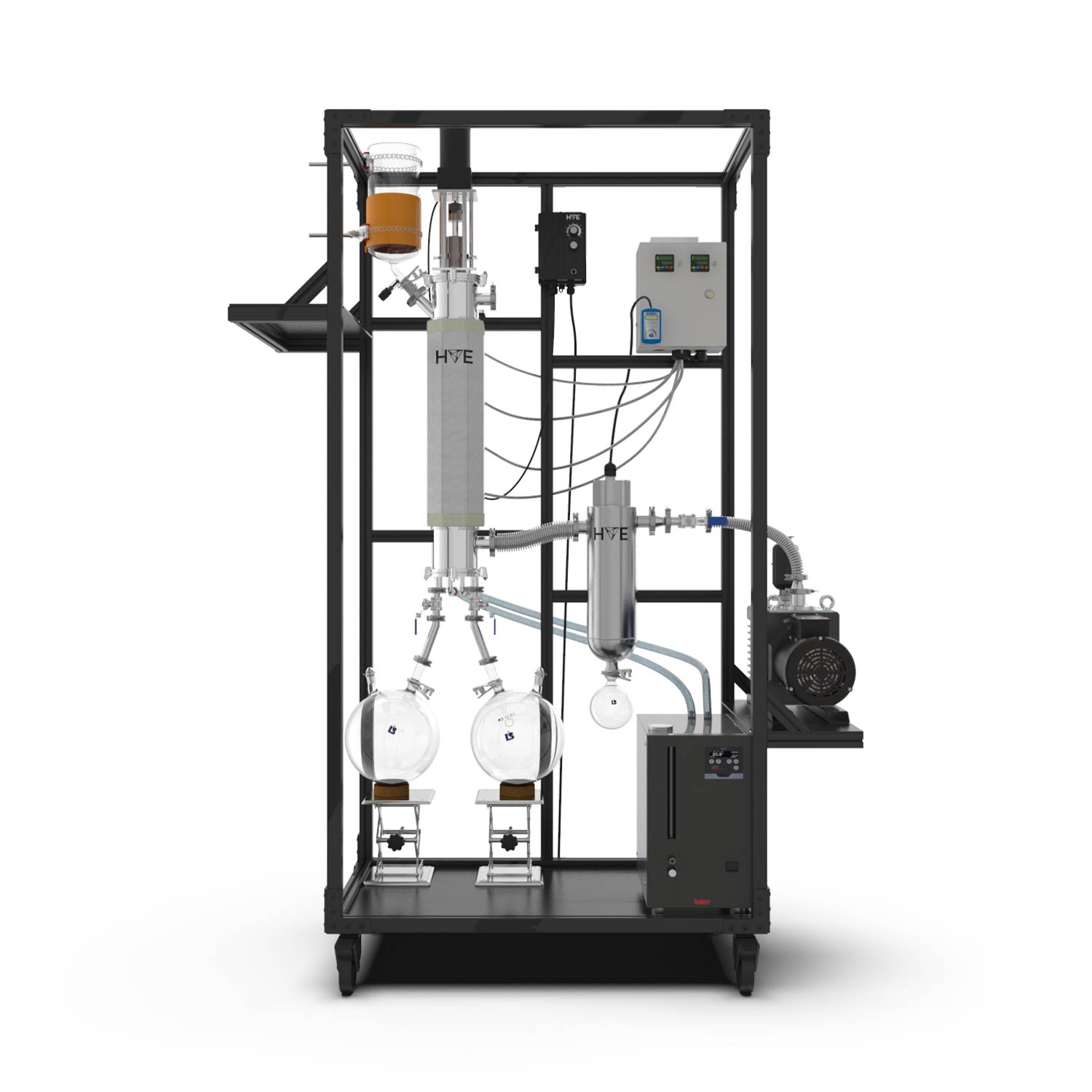

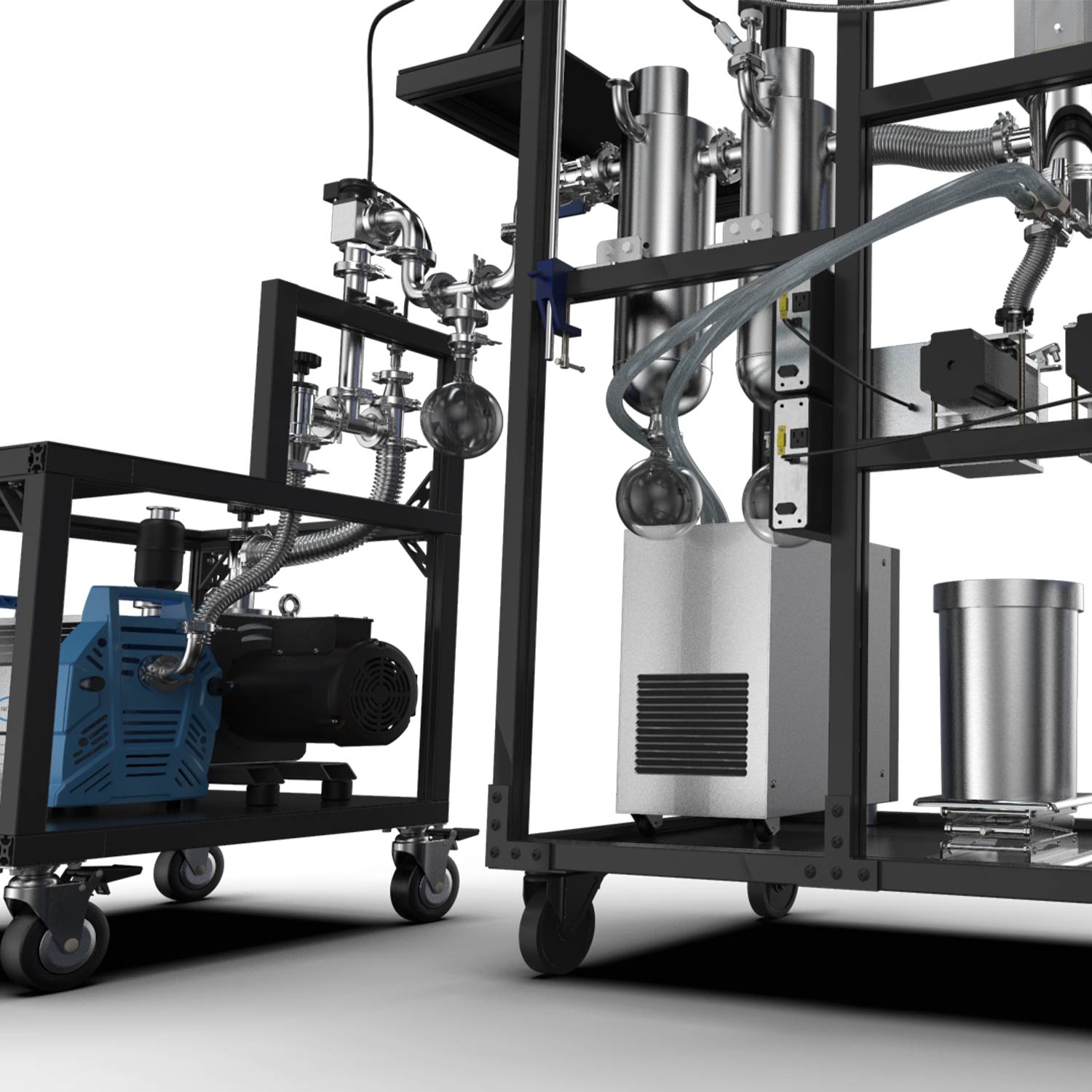

Thin Film Distillation System

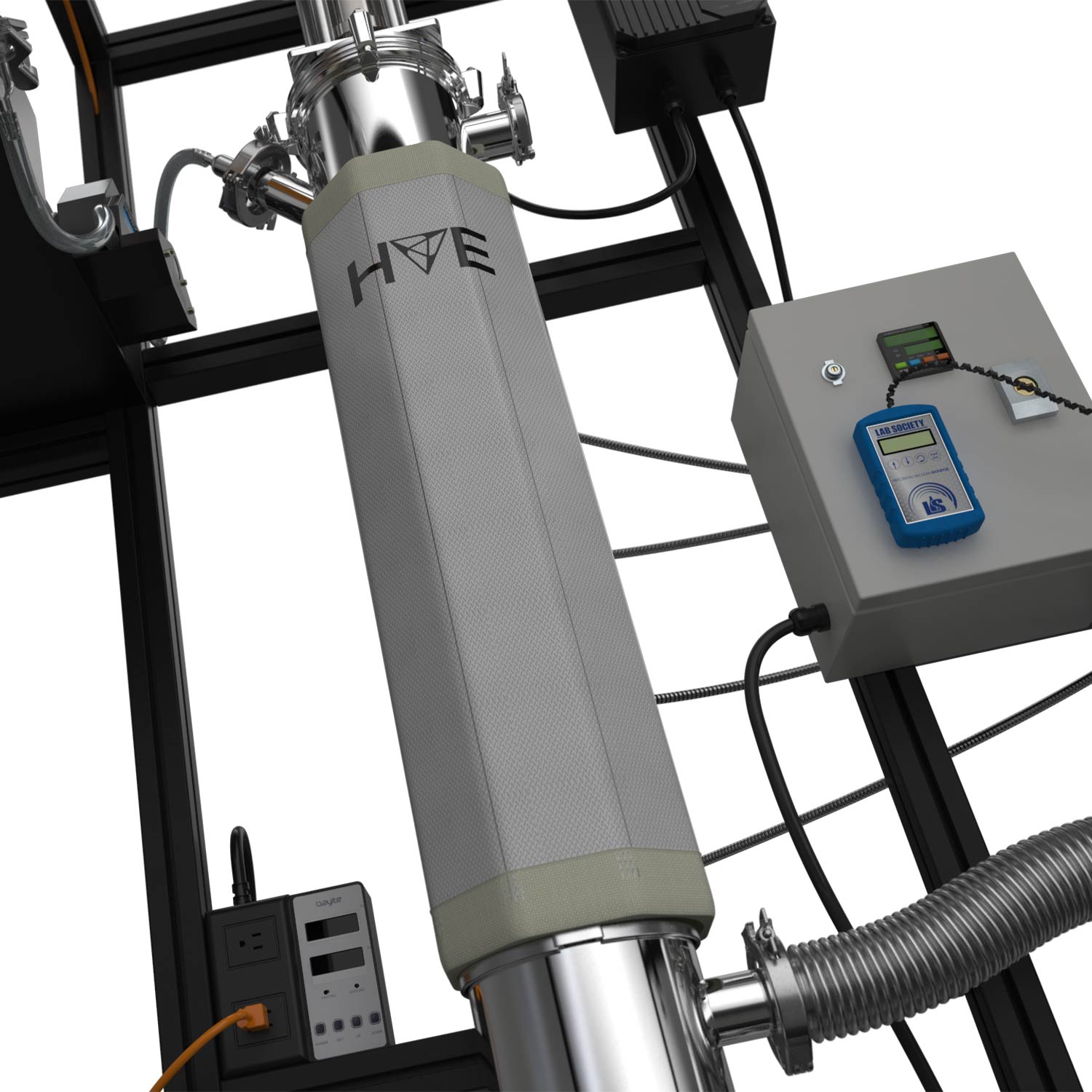

Precise vacuum monitoring and analytics are provided by the LS-PVM-1BT, a Bluetooth-capable (and EliteLab® compatible) vacuum gauge mounted to the rear of the high surface area, baffled Auxiliary Condenser/Cold trap, which is also constructed of Stainless Steel.

System Specifications:


Footprint of Common Frame:

  • Depth: 27 Inches (685.8mm)
  • Width: 45 Inches (1143mm) + 12 Inches Per Shelf (2 Included)
  • Height: 84 Inches (2133.6mm)

Additional Footprint for Shelves, Pumps, Chillers/Heaters not Included Here

Utility Requirements:


Electrical

  • 6400 Watts @ 240V (30 amps max) – Evaporator Heater
  • 600 Watts @ 120V (5 amps max) – Feed Tank Heater
  • 180 Watts @ 120V (1.5 amps max) – Main Motor

Additional Wattage for Vacuum Pump & Chiller/Heater not Included Here

Vacuum Pump

  • Minimum 20 CFM flow rate with at least 30 mTorr ultimate vacuum rating (LS-RV-36CRVpro30)

Heating & Cooling

  • Recirculating Chiller/Heater: Minimum 0°C – 75°C range for standard operation
  • Higher Max. Temp, between 100°C to 200°C can be used
  • Minimum 500 Watts Cooling at 20°C
  • 1000 watts @ 20°C for Improved Performance

Cold Trap

  • Manual Chilling: Dry Ice + Isopropanol/Acetone, or LN2 for Chilling
  • Immersion Mechanical Chilling: Polyscience IP-80 with 1.75” Rigid Coil

Training Options Available Upon Request:

  • 1-Day Lab Society Thin Film Distillation Install & Training* – $3000
  • 2-Day Lab Society Thin Film Distillation Install & Training* – $6000

*Note: All System requirements must be present on-site prior to arrival, including electrical connection, vacuum pump, chiller/heater, & cold trap coolant.
