100V-120V (20A max.), 220V-240V (10A max.), 50/60Hz
1000 V rms (max.), 20 ( /- 1) kHz, 600 W (max.)

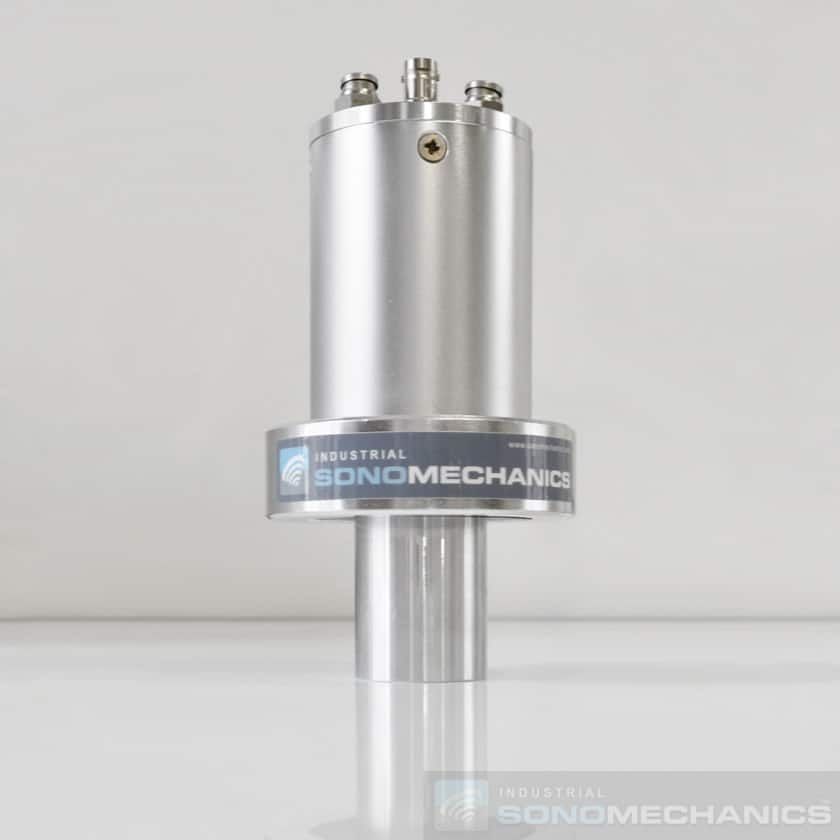

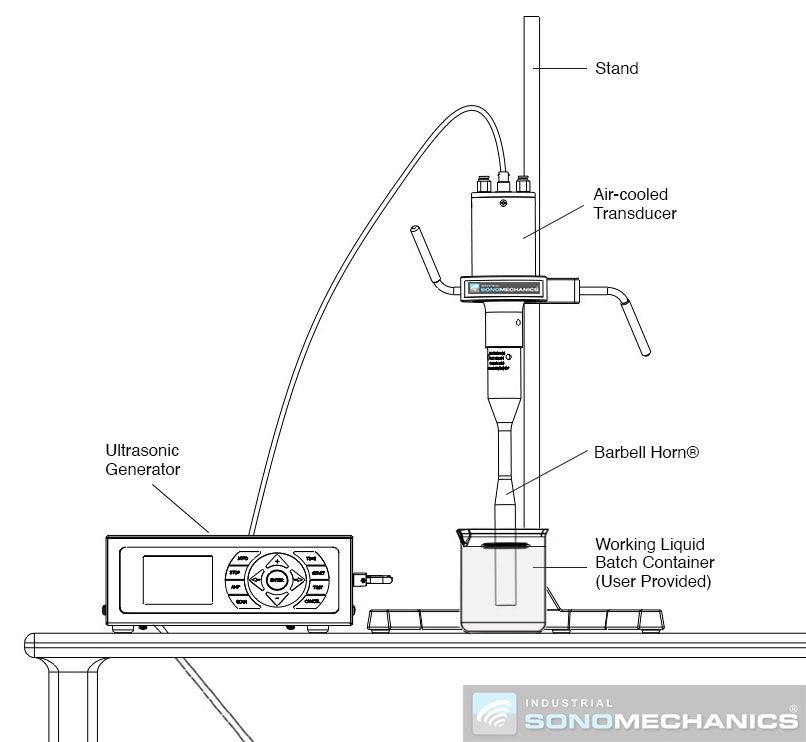

Air-cooled piezoelectric transducer (ACT-22-LSP)
Output Characteristics: amplitude — 22 microns (max.), frequency 20 ( /- 1) kHz, power — 600 W (max.)

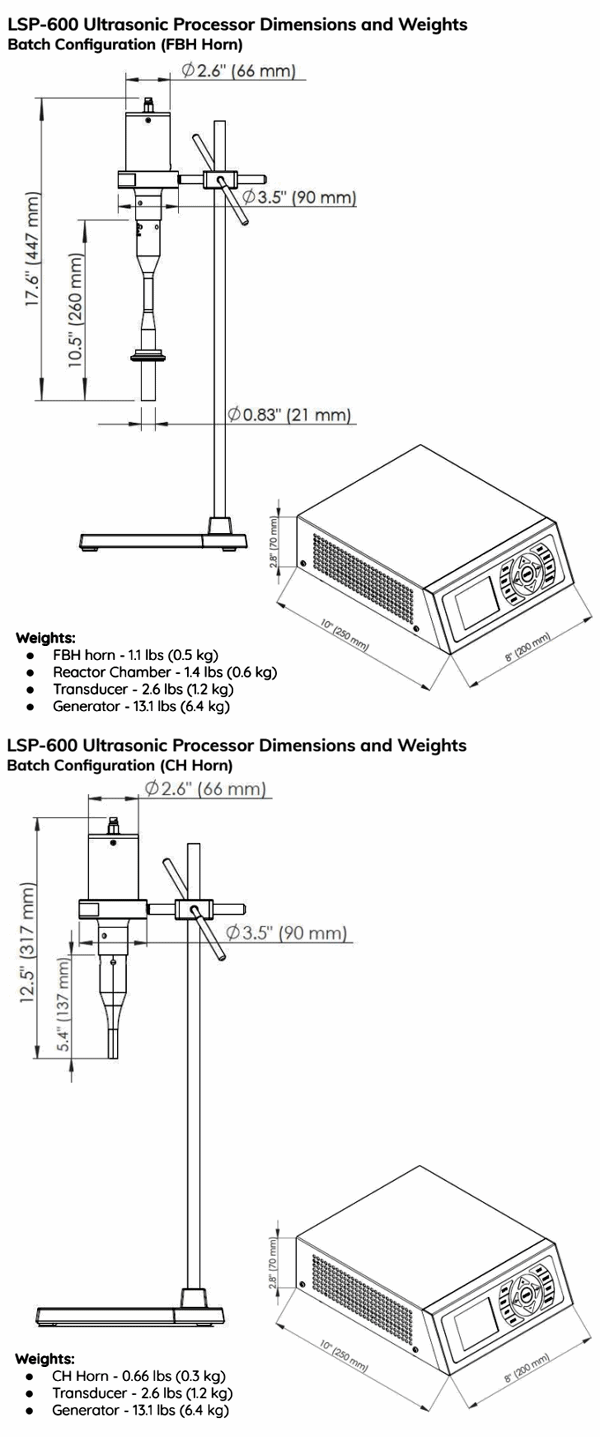

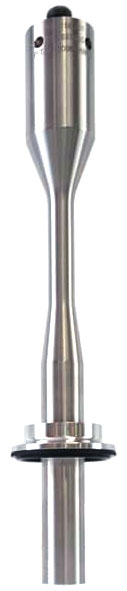

Full-wave Barbell Horn® (FBH, 21 mm tip diameter)
Output characteristics: amplitude — 115 microns (max.), frequency — 20 ( /- 1) kHz, power — 600 W (max.)
Materials of wetted parts
Reactor chamber — 304 stainless steel. Food compatible. Horns (FBH, CH, microtips) — Grade 5 Titanium (Ti6Al4V). Food compatible. Gaskets — Buna-N or Teflon. Food compatible. O-rings — Buna-N. Food compatible.
103 – 106 dBa at 2′ away. Noise reducing earmuffs or sound enclosure required.

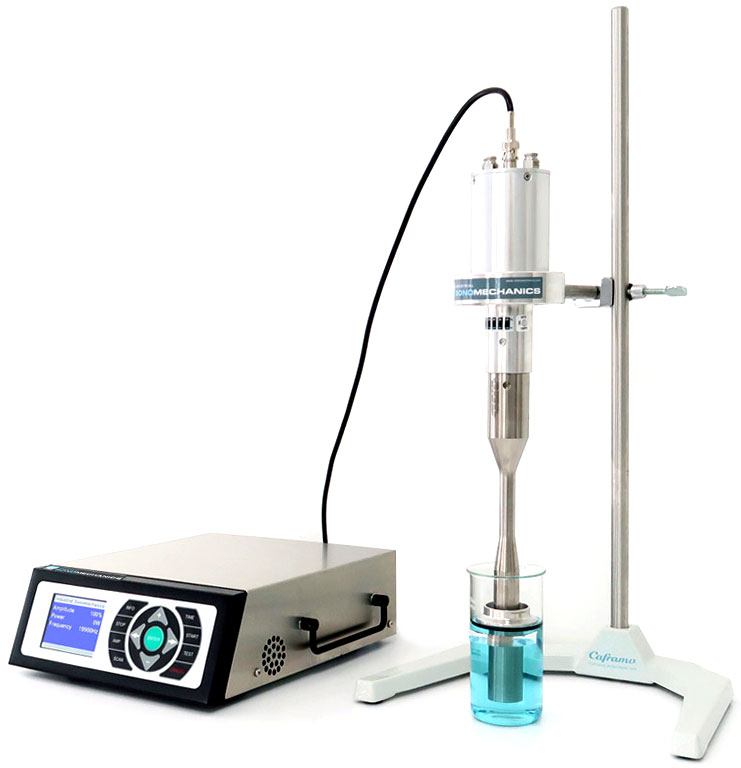

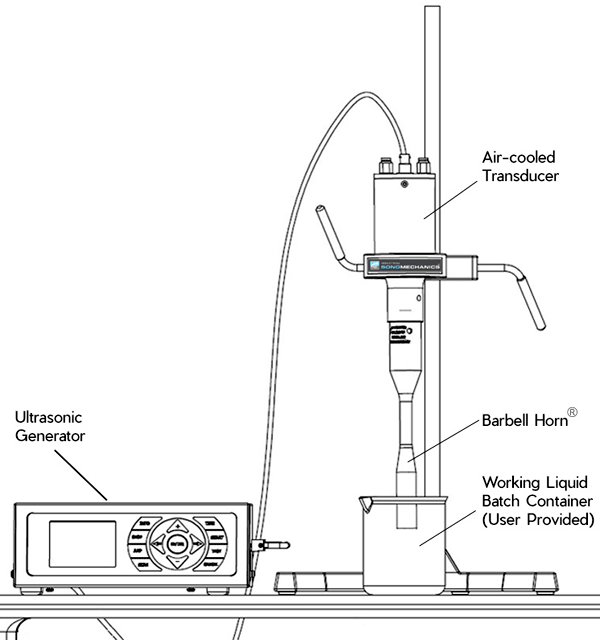

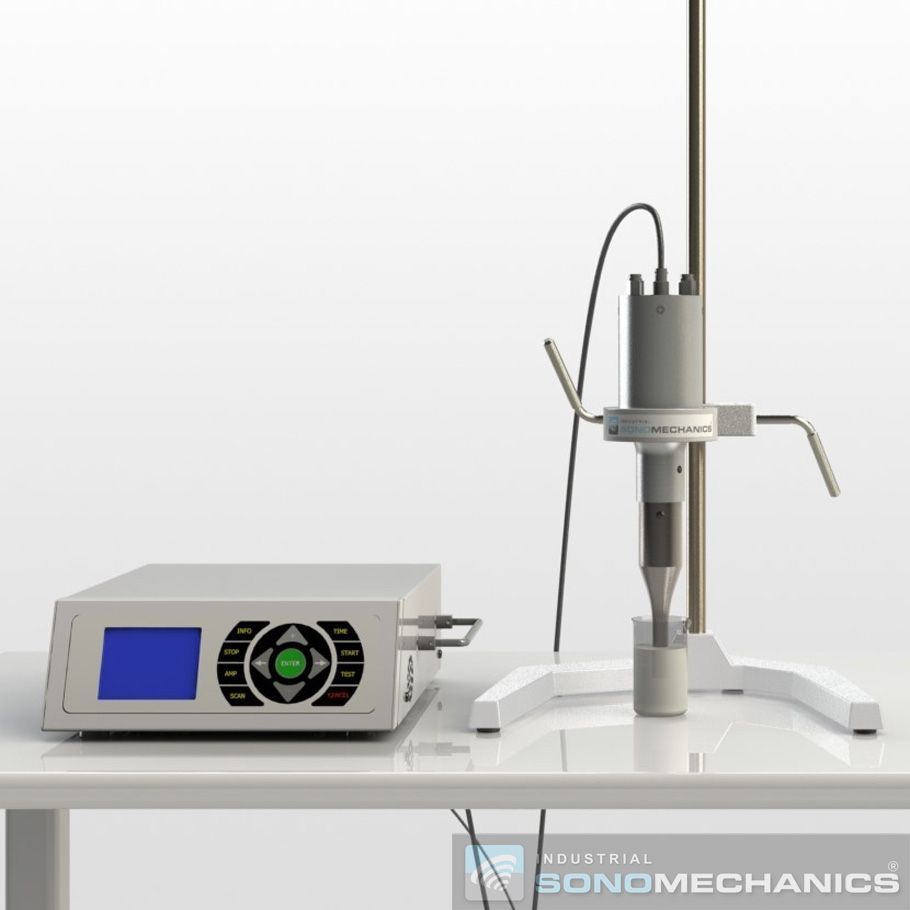

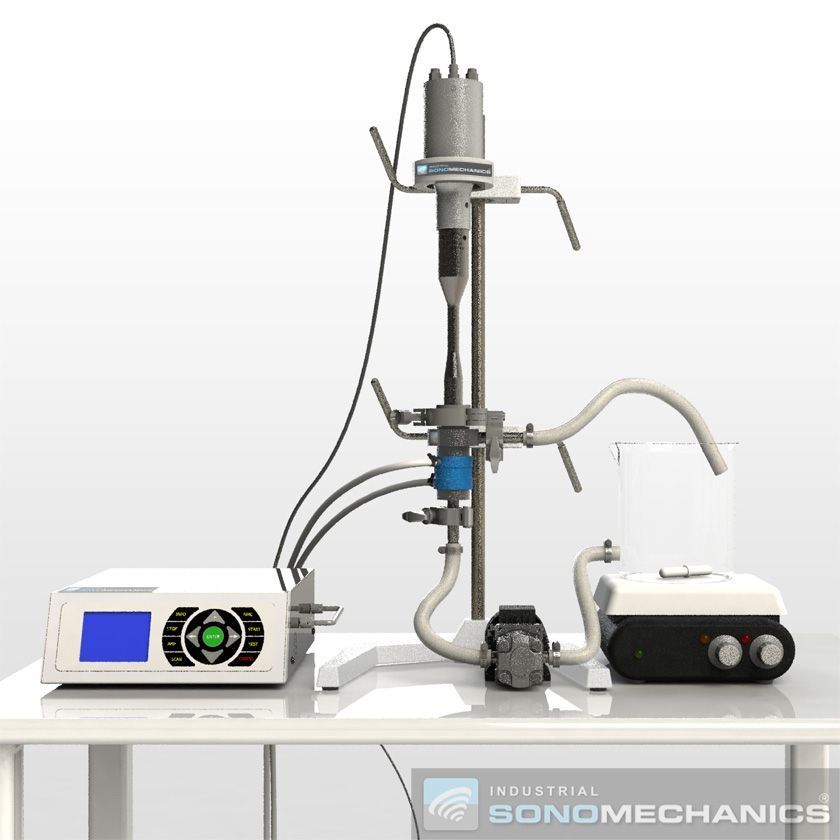

15 ml – 100 ml — with CH (batch mode) 100 ml – 500 ml — with FBH (batch mode) 500 ml – 1 L — with FBH reactor chamber (flow-through mode).
Productivity rates are highly dependent on the nature of each process and range from about 200 mL/h for challenging tasks (e.g., top-down nanocrystallization of active pharmaceutical compounds) to over 10 L/h for fast processes (e.g., degassing, deagglomeration).

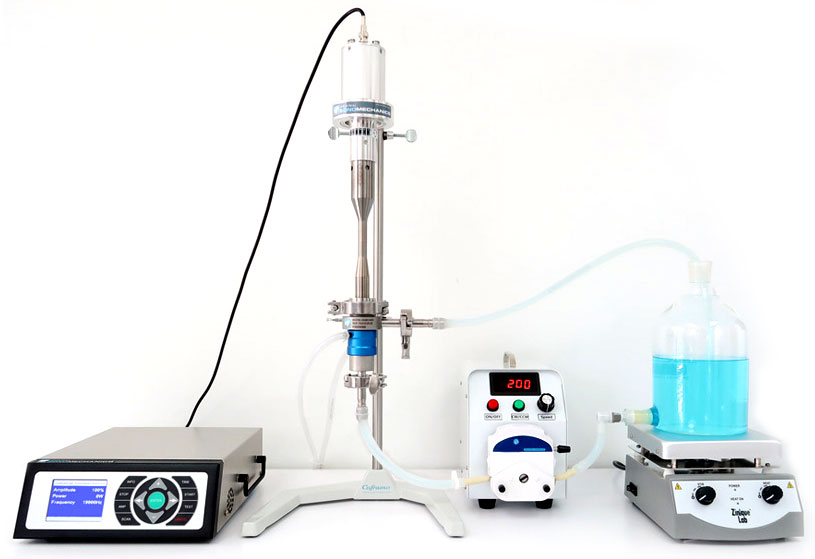

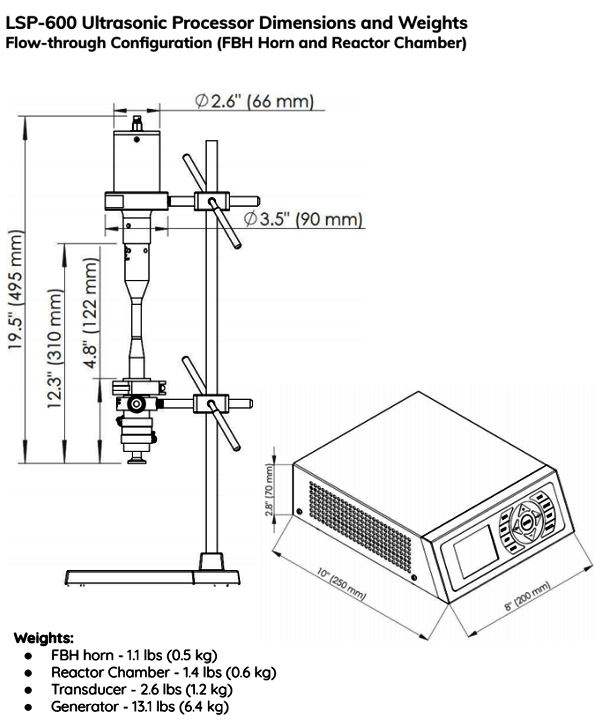

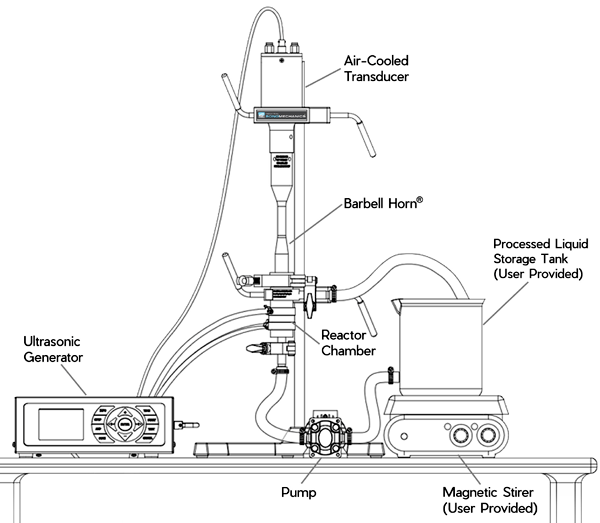

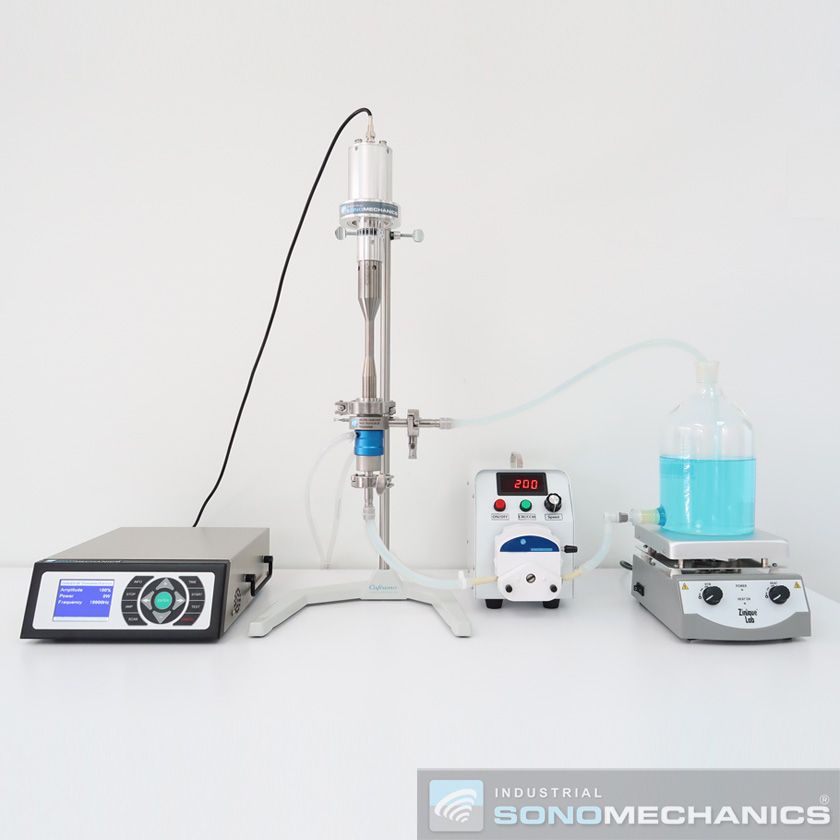

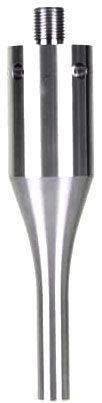

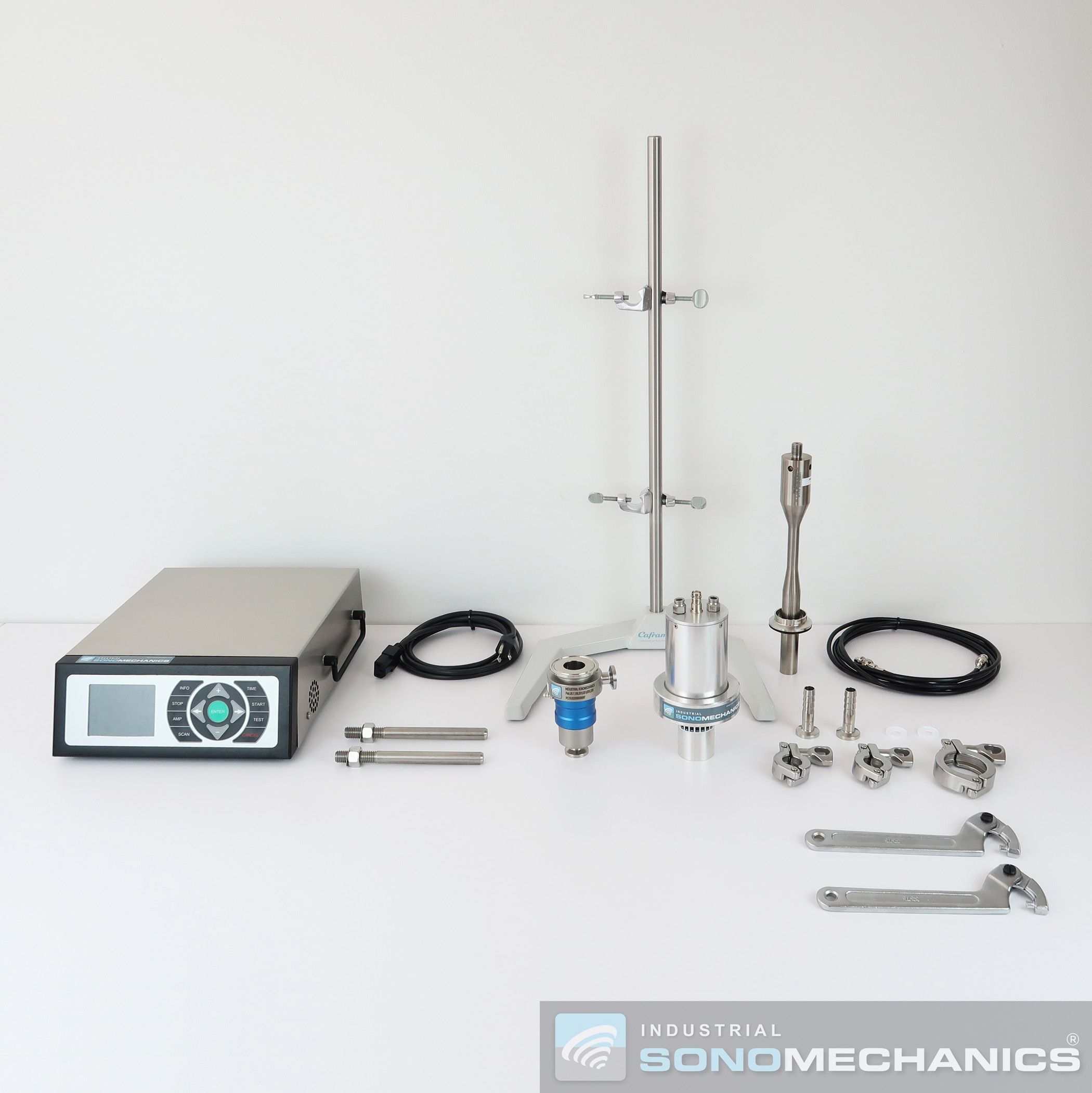

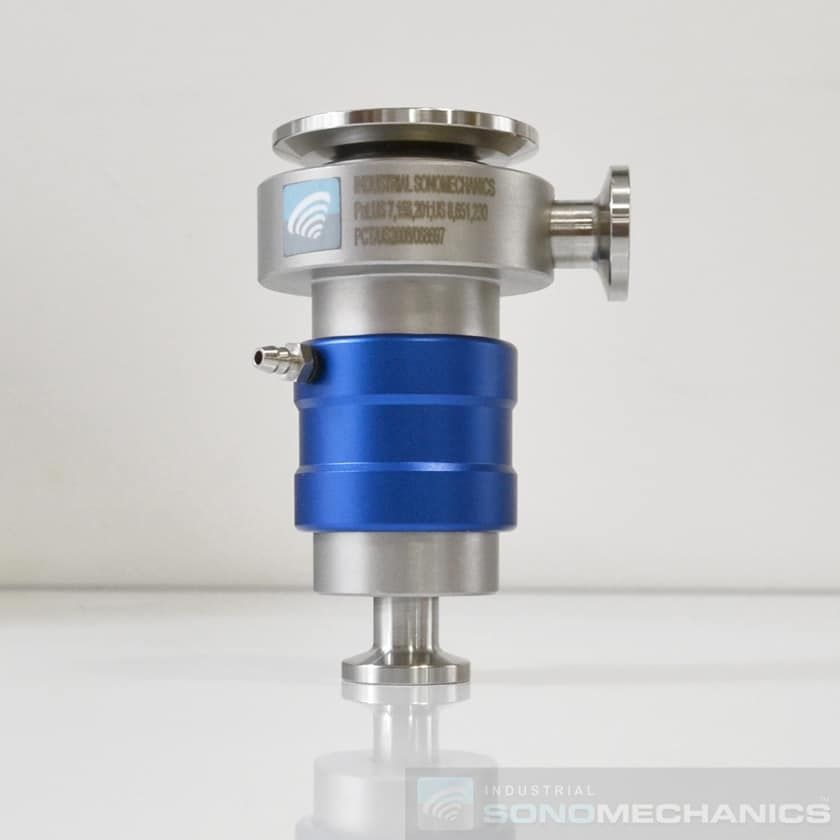

Flow-through reactor chamber (flow cell, 1/2″ tri-clamp inlet and outlet, cooling jacket) Conventional horn (CH, 12.7 mm tip diameter, amplitude — 113 microns (max.)) Support stand with clamp holders Noise reduction ear muffs
User Manual, Assembly Guide
Medical Cannabis & Case Studies, Commercial Production of Water-Soluble THC & CBD
