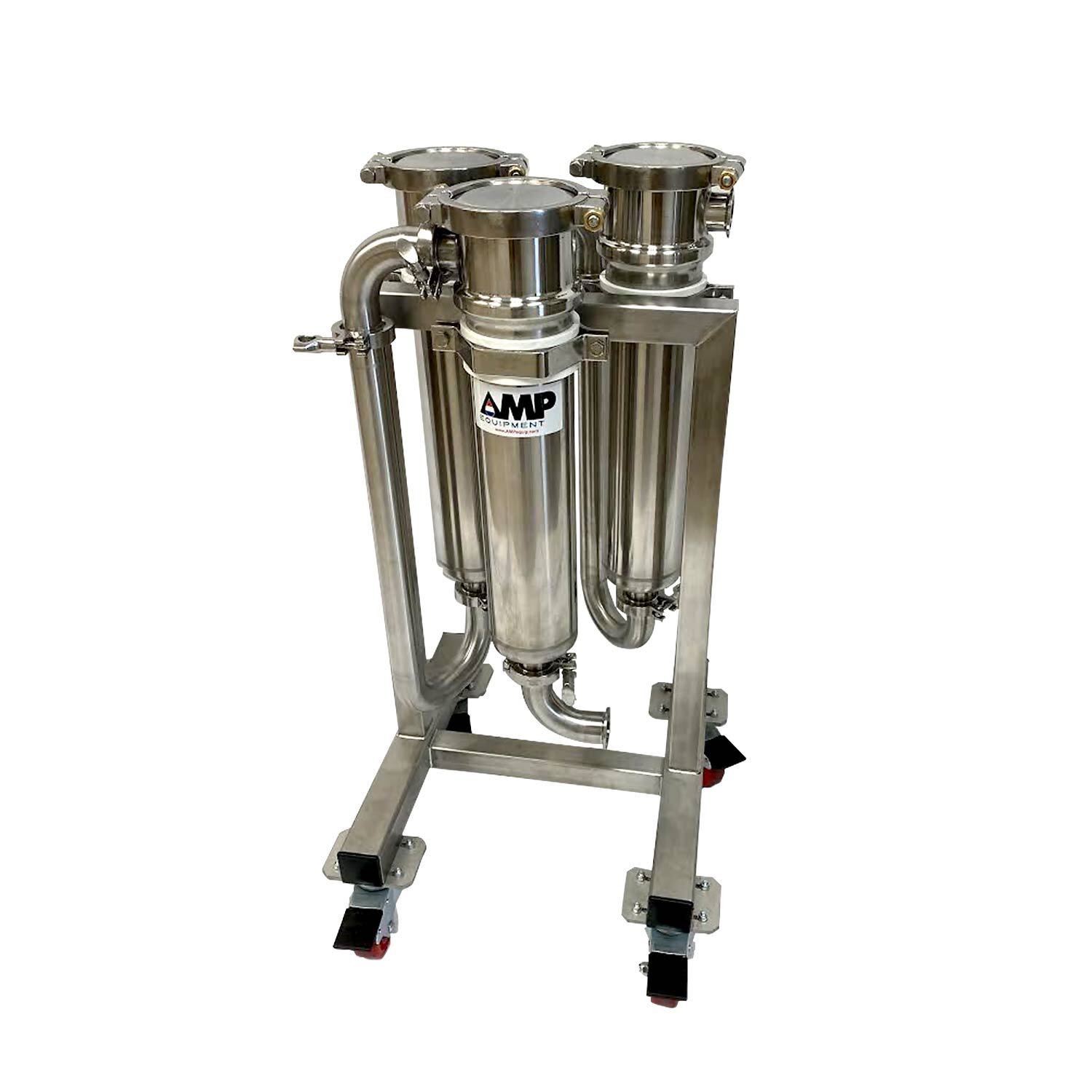

“The Admiral” – Liquid Filtration System


The AMP Admiral Filter is a 3-stage filtration skid designed to remove fats, waxes, and particulates. The liquid filtration system has a small footprint and can be easily retrofitted to other existing systems for inline filtration.
The AMP Admiral Filter system can also be used as a stand-alone filtration system with vacuum or positive pressure (recommended).
Admiral Filter systems are USA-made with a precision-machined housing that creates a tight seal, ensuring no solution bypasses the internal filter bags.

SKU: 4201229 Category:


Materials- 316L Stainless (Housings/Piping/Lids), 304 Stainless (rack/clamps), Viton (Gaskets), PVC (mounting sleeve)
Cascading three stage filter- Suggested staging: 10->5->1 micron or 10->5->0.5 micron
1.5-inch Tri-clamp piping allows for fast throughput around 50 GPM max
Can be attached In-line to ethanol/hydrocarbon systems
Cascading filter design allows deep filtration (0.5 micron lowest) while using a larger 10-micron filter for the bulk of filtration
Can be used either with vacuum or positive pressure by paring with a liquid transfer pump
Utilizes PTFE coated filter bags for chemical resistance
Max Pressure: 300 PSI
Minimum Temp: -15F (Viton) or -320F (optional Tuff Steel Gaskets)
#4 Filter Bags
Footprint: 17″ x 20″ x 36″
Available Filter Bag Sizes: 10, 5, 1, 0.5 Micron
