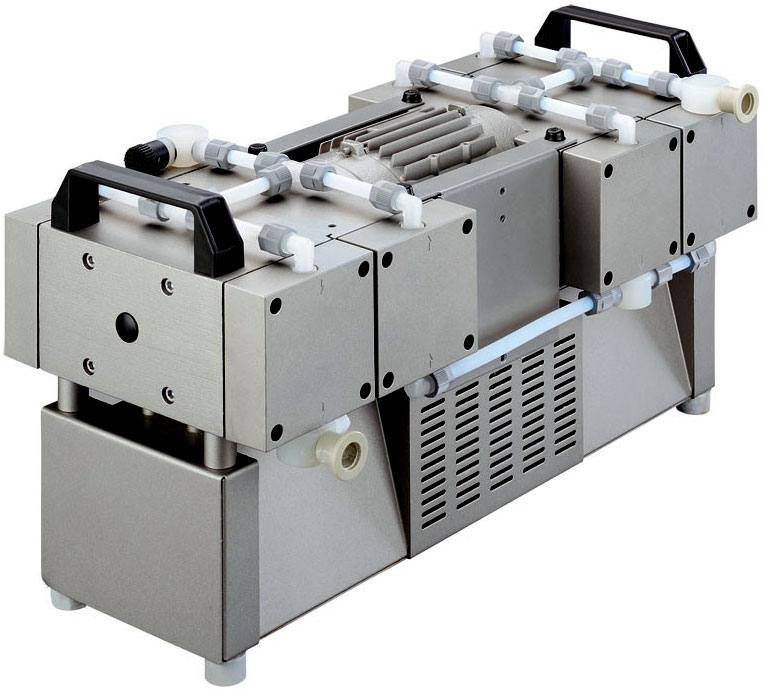

Welch 2163 6.1 cfm Full Chemical-Resistant 8-Head Diaphragm Pump

3,912.00$

cUL only available to 110V model.

SKU: 4200772 Category: Tag:

Description

 Electrical requirements
 110V or 220V, 50/60Hz single phase

 Pumping rate
 6.1 cfm / 174 L/min

 Gasket material
 All-PTFE

 Ultimate vacuum level
 6 torr / 8 mbar

 Maximum vacuum
 29.9 in. Hg

 Inlet/Outlet
 10mm hose barb

 Adjustable vac./gas ballast
 No

 Unit dimensions
 21.25 x 9.25 x 12″ (LxWxH)

 Package dimensions
 28 x 16 x 20″ (LxWxH)

 Shipping dimensions
 40 x 48 x 25″ (LxWxH)

 Package weight
 90 Lbs

 Shipping weight
 130 Lbs

 Compliance
 cUL (optional, 110V only), CE
