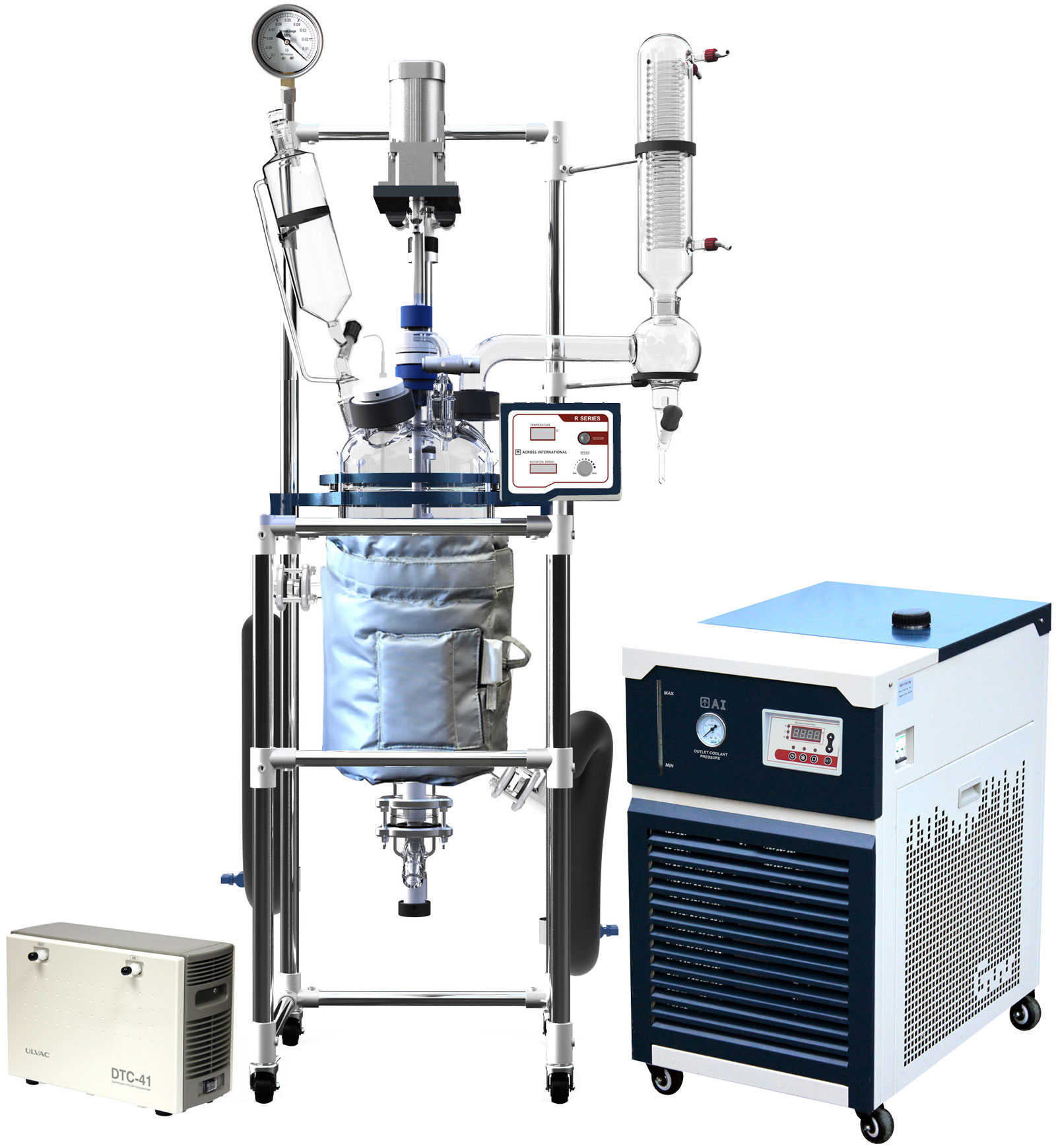

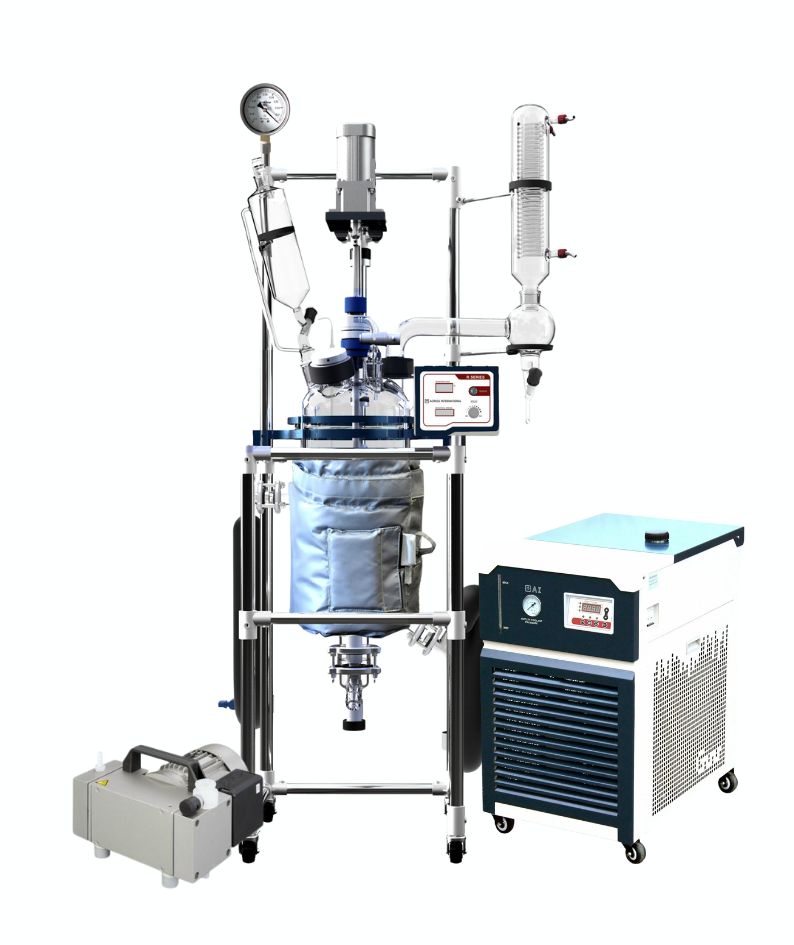

Ai 10L Single or Dual Jacketed Glass Reactor w/ Chiller & Pump

$18,393.73

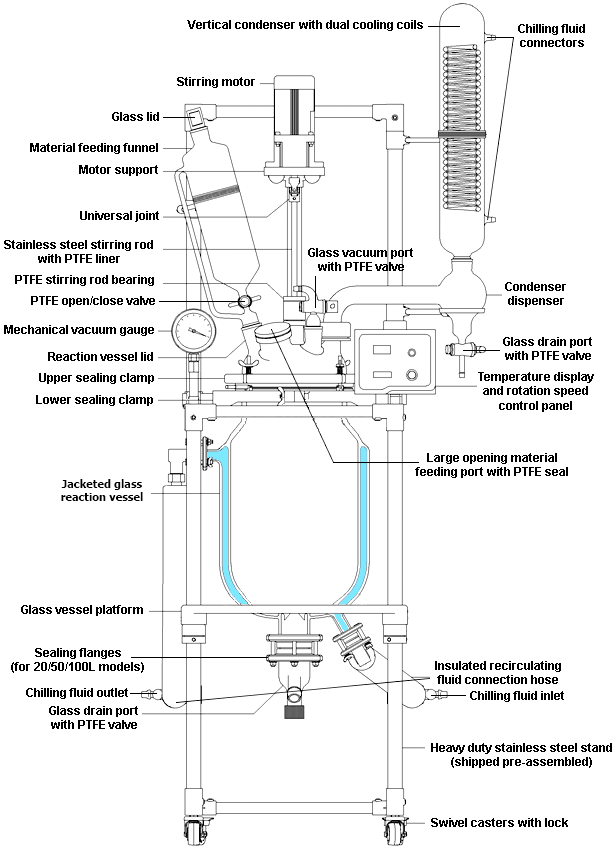

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200827 Category: Tag:

Description

 Model
 R10

 Electrical requirements
 110V 60Hz or 220V 50/60Hz, 1-PH, 90W

 Reaction glass vessel capacity
 2.6 gallons (10L)

 Cooling/heating jacket capacity
 0.8 gallon (3L)

 Glass material
 High borosilicate glass 3.3

 Rotation controller
 Digital controller with variable frequency drive

 Maximum jacket pressure
 4.4 psi or 0.03 MPa

 Drain valve
 Flush seal design with large opening and flat flange clamp

 Agitator
 Style: impeller Material: 304 stainless steel with PTFE liner

 Condenser
 Dual-cooling coil design

 Funnel
 Pressure equalizing

 Vacuum gauge
 Mechanical

 Swivel caster
 Four

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level

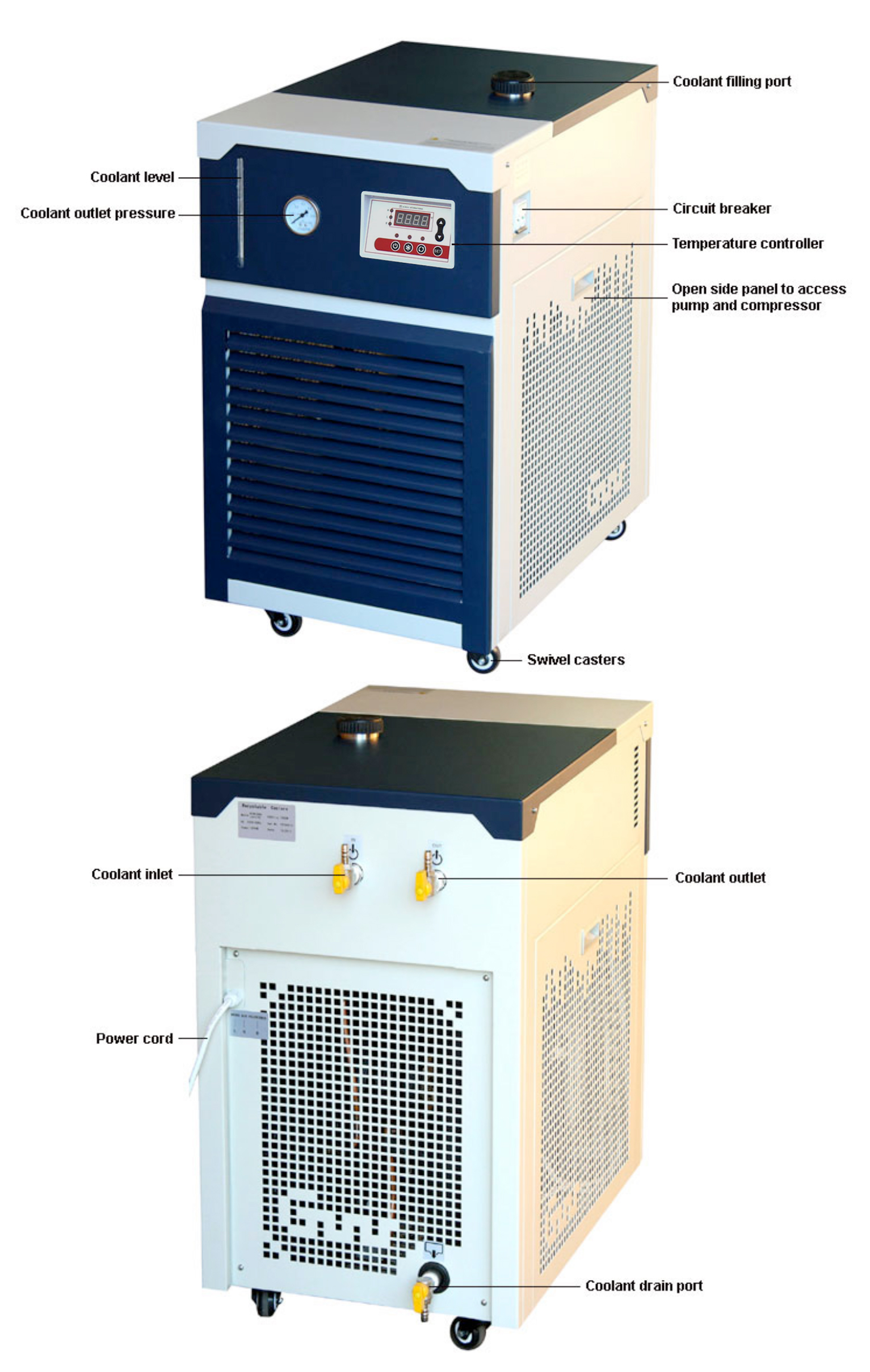

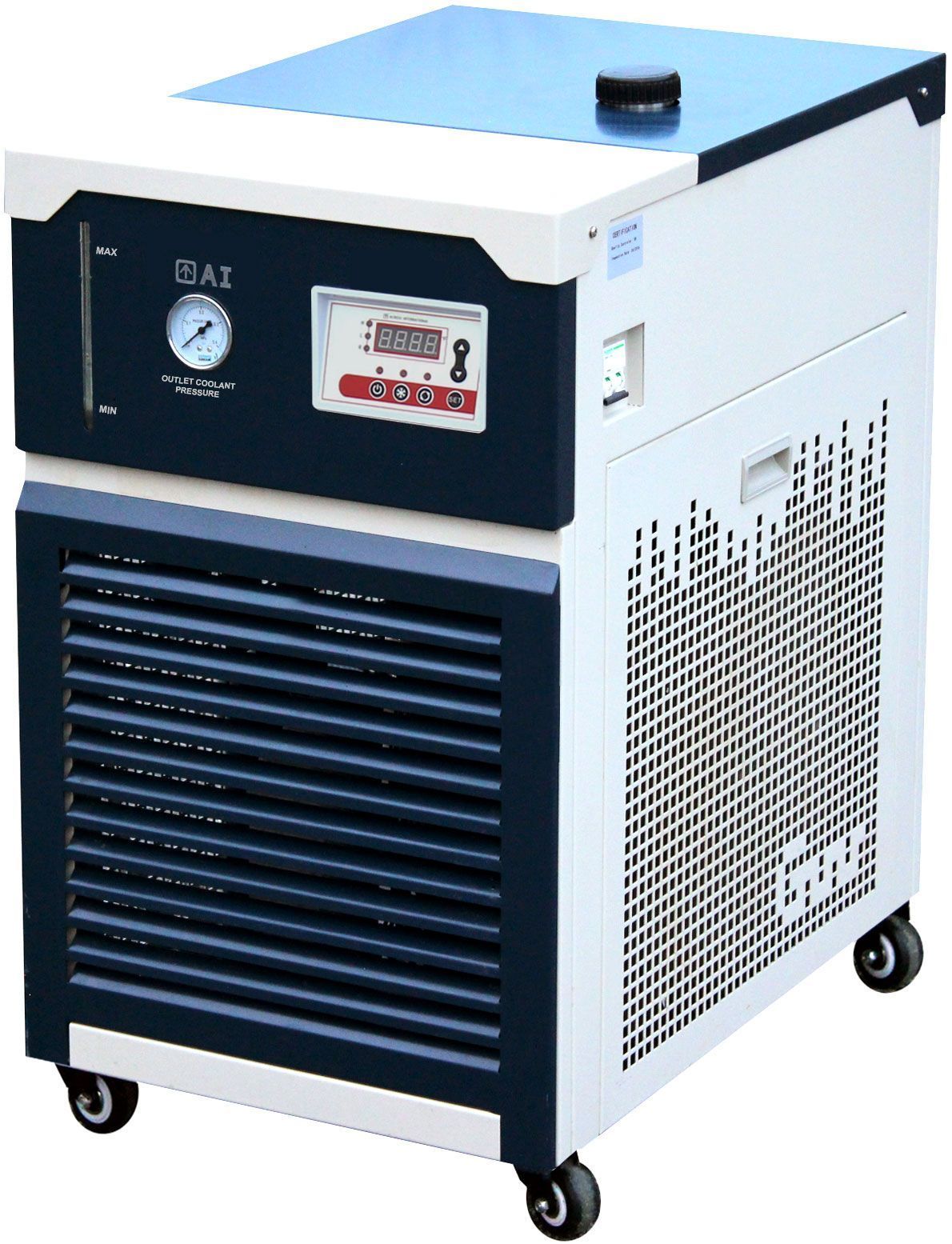

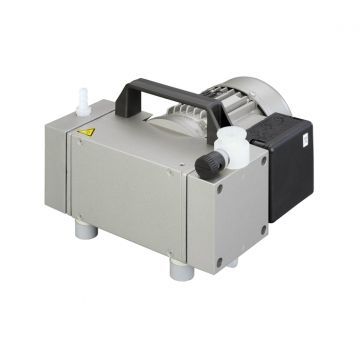

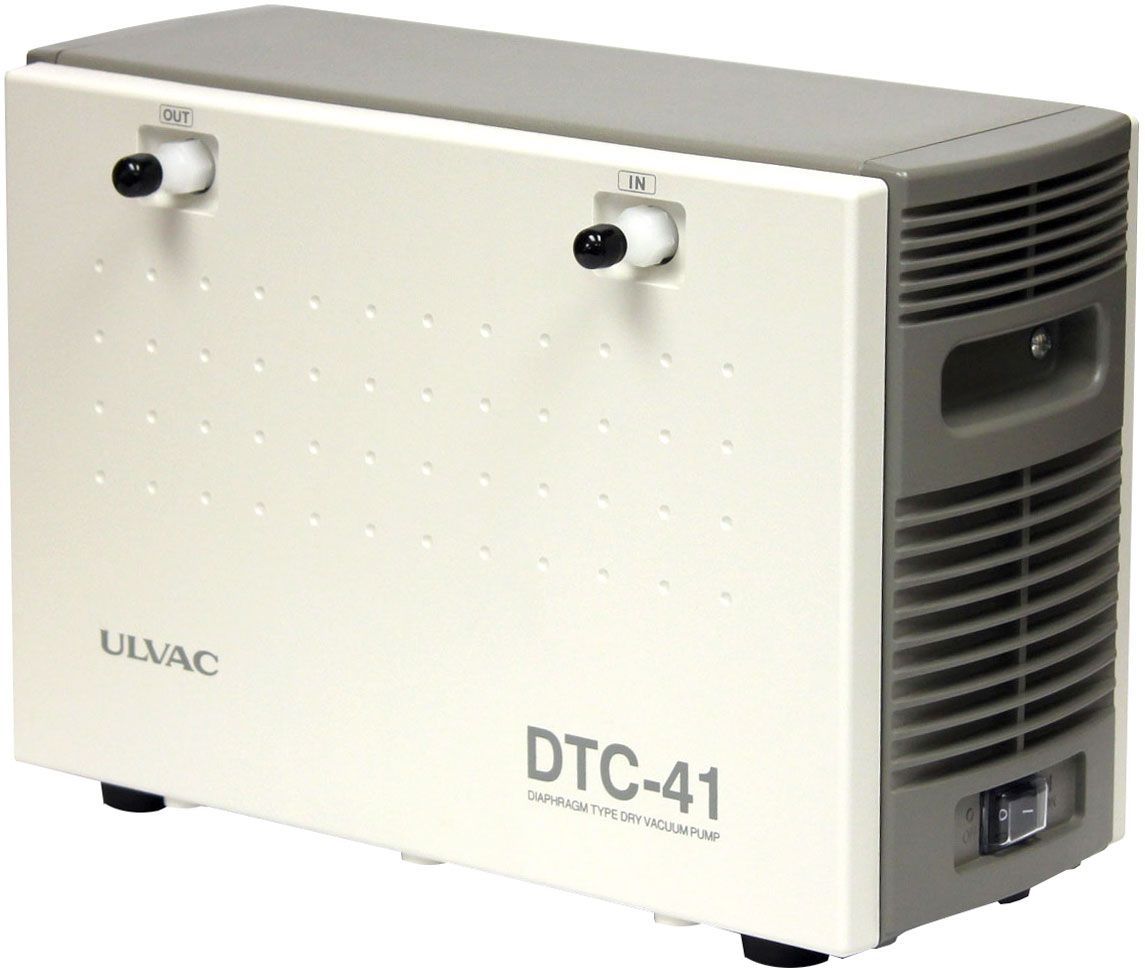

 < 700 torrs  Vacuum sealing  Glass or PTFE  Drain port ground clearance  15 inches  Reactor dimensions (WxDxH)  18 x 26 x 78"  Shipping dimensions  24 x 67 x 26"  Shipping weight  240 Lbs  Click here for specs for 220V C30-30 -30°C/-22°F recirculating chiller  Click here for specs for ULVAC DTC-41 1.6 cfm dual-head diaphragm pump  Download  Ai jacketed reactor brochure
