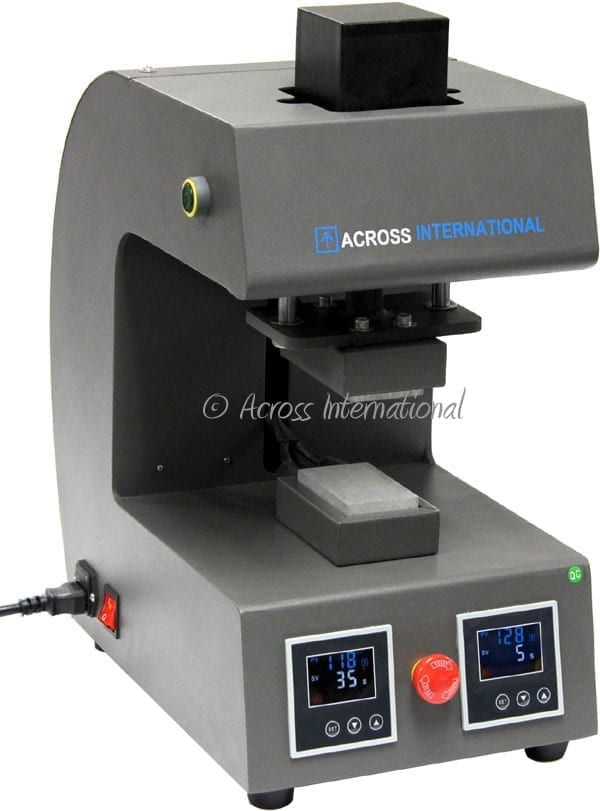

Ai 3×2″ Compact Electrical Heat Press with Dual Heating Platens


The Ai HydroPress 3 x 2″ electrical heat press features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the unit is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. This is a “plug and play” unit and does not require an air compressor to operate.




– Solid aluminum heating platens for easy maintenance and even heating
– Compact, lightweight, and powerful
– Digital timer and alarm
– Dual heating platens for increased temperature stability
– Dual LCD temperature controllers display in Fahrenheit or Celsius
Excellent for creating solventless botanical extractions
– Plug and play, no noisy air compressor needed


 Electrical requirements
 110V 60Hz, 220V 50/60Hz, single phase, 1000 watts
 Heated platen
 Dimensions: 3 x 2 inches
Number of heated platens: two
Material: Solid aluminum
 Maximum downward pressure  4,370 lbs or 728 psi
(measured with an IEEE 1451.4 compliant, 20,000 lb
pressure sensor, made and calibrated in USA)
 Temperature controller
 Type: PID controlled digital controller with LCD panel
Number of controller installed: two
Display unit: Fahrenheit or Celsius
Temperature range: ambient to 480°F (250°C)
Timer range: 1 to 999 seconds
 Body material  Powder coated steel
 Safety  Dual-start buttons, timer alarm
 Unit weight/shipping weight
 50 Lb / 70 Lb
 Unit dimensions (WxDxH)  10 x 14 x 19 inches
 Shipping dimensions (WxDxH)  13.5 x 17 x 20 inches
 Recommended heat settings for botanical extractions  Flowers: 180°F to 230°F
Concentrates: 150°F to 200°F
 Warranty  90 days


Standard package

 Part description  Quantity
Part image
 Ai 3 x 2″ electrical heat press with dual heating platens 1 pc
 US 110V 3-prong power cord 1 pc
 User’s manual 1 pc

Additional information

Weight 70 lbs
Dimensions 14 × 17 × 20 in
