Description
Features
– Solid aluminum heating platens for easy maintenance and even heating
– Swivel top for easy loading and unloading
– Digital timer and alarm
– Locking press arm to maintain consistent pressure
– Dual heating platens for increased temperature stability
– Dual LCD temperature controllers display in Fahrenheit or Celsius
– Adjustable pressure
– Excellent for creating solventless botanical extractions
Specifications
| Electrical requirements |
110V 60Hz, 220V 50/60Hz, single phase, 1100 watts |
| Heated platen |
Dimensions: 3 x 2 inches Number of heated platens: two Material: soild aluminum |
| Maximum downward pressure | 1,000 lbs or 167 psi (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in USA) |

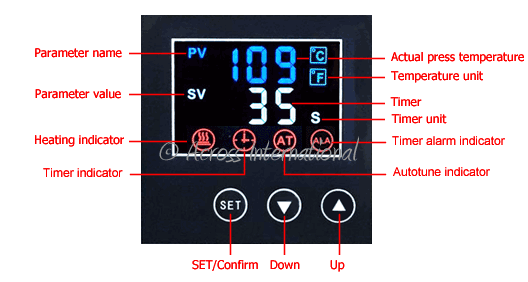

| Temperature controller |
Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 480°F (250°C) Timer range: 1 to 999 seconds |
| Body material | Powder coated steel |
| Safety | Press arm lock, timer alarm |
| Unit weight/shipping weight |
30 Lb / 50 Lbs |
| Unit dimensions (WxDxH) | 14.5 x 13.5 x 19 inches |
| Shipping dimensions (WxDxH) | 19 x 18 x 22 inches |
| Recommended heat settings for botanical extractions | Flowers: 180°F to 230°F Concentrates: 150°F to 200°F |
| Warranty | 90 days |
Standard package
| Part description | Quantity |
Part image |

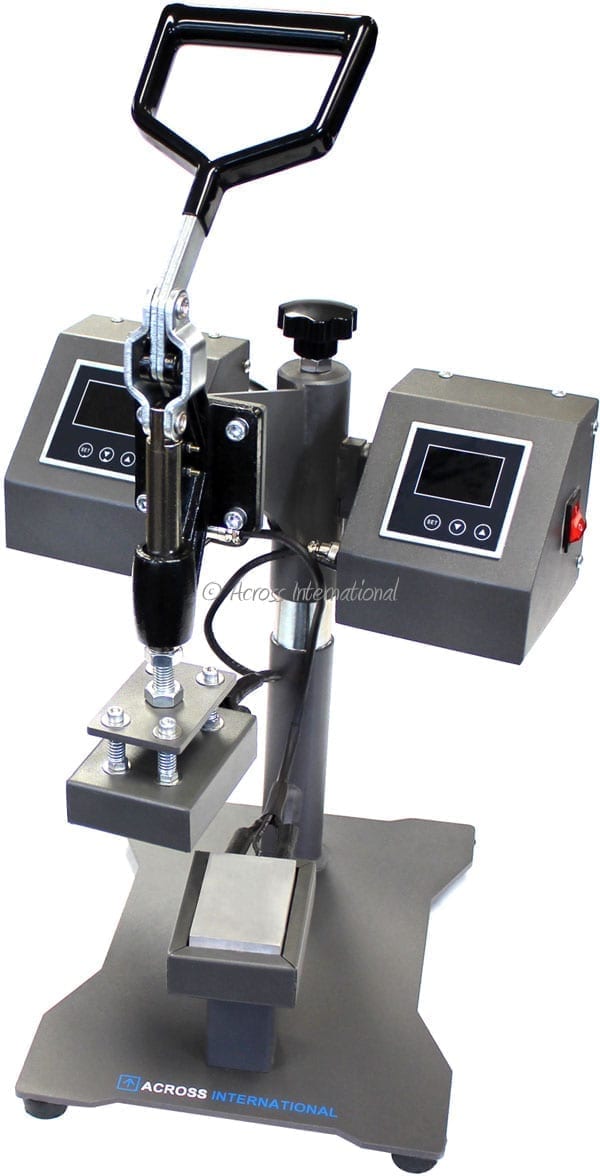

| Ai 3×2″ manual heat press with dual heating platens | 1 pc | |
| User’s manual | 1 pc |  |
