Cascade Filter Reactor Package

Contact for Pricing

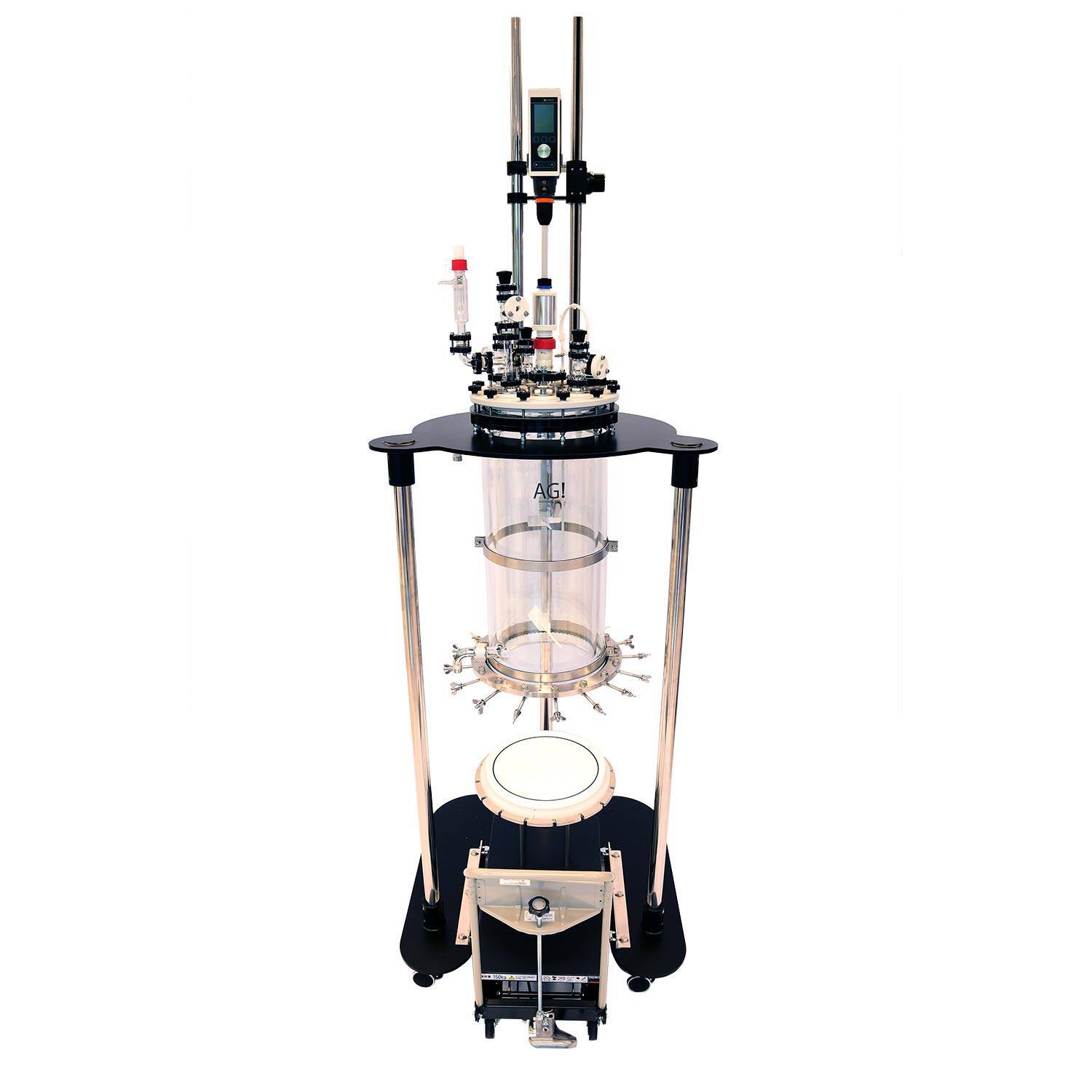

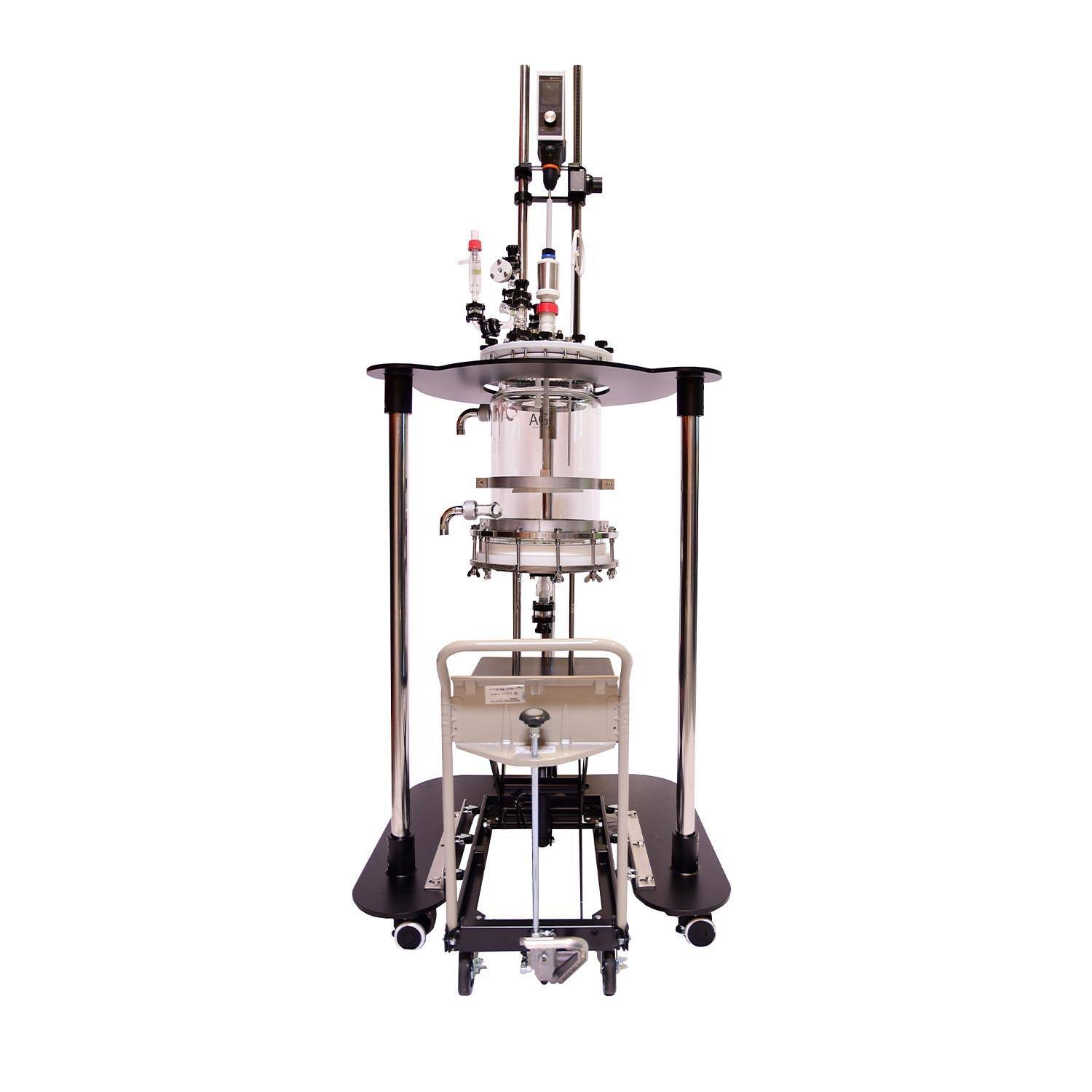

Filter Reactor Packages from Cascade Sciences are complete isolate production systems that include the reactor, filter housing, temperature control, and vacuum system on a mobile cart.

SKU: 4201224 Category:

Description

Filter Reactor Package
20L
50L

Operating Pressure:
Full Vacuum Up to 0.5 bar G
Full Vacuum Up to 0.5 bar G

Operating Temperature:
-90°C to 200°C (ΔT:110°C)
-90°C to 200°C (ΔT:110°C)

Approx. Footprint:
76”W x 60”D x 102”H
76”W x 60”D x 118”H

Reactor Unit:
37.4”W x 54.1”D x 100.9”H
37.4”W x 54.1”D x 114.8”H

Equipment Pkg:

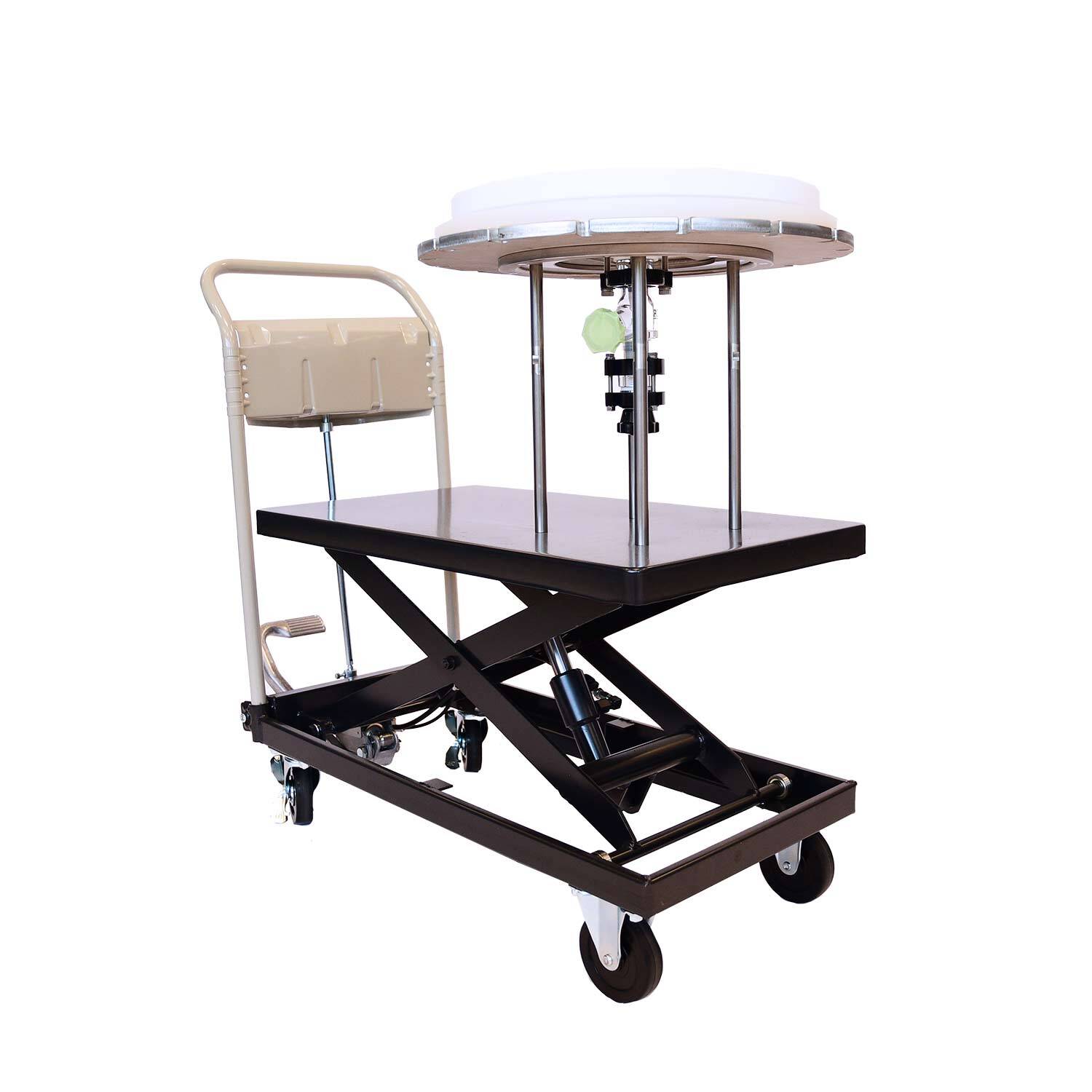

Integrated Mobile Cart 26”W x 26”D x 51”H
Integrated Mobile Cart 26”W x 26”D x 51”H

Power Circuits:
1 230V/1ph/20AMP & 1 each 120V/1ph/20AMP
1 208V/1ph/20AMP, 1 120V/1ph/20AMP, 1 120V/1ph/20AMP

Agilent Vacuum Pump – NRTL Certified

Speed:
5.4 CFM
9 CFM

Ultimate Pressure:
2 x 10-2 Torr
10 x 10-3 Torr

Power:
120V/1ph/6AMP
120V/1ph/5AMP

Cold Trap – NRTL Certified

Capacity:
3Qt. (2839mL)
3Qt. (2839mL)

Temperature:
-50°C
-50°C

Power:
115V/1ph/4AMP
115V/1ph/13AMP

Temperature Control – NRTL Certified

Type:
CC-508
Huber or Julabo

Temp Range:
-55°C to 200°C
-90°C to 200°C

Power:
230V/1ph/16.5AMP
208V/1ph/14.5AMP
