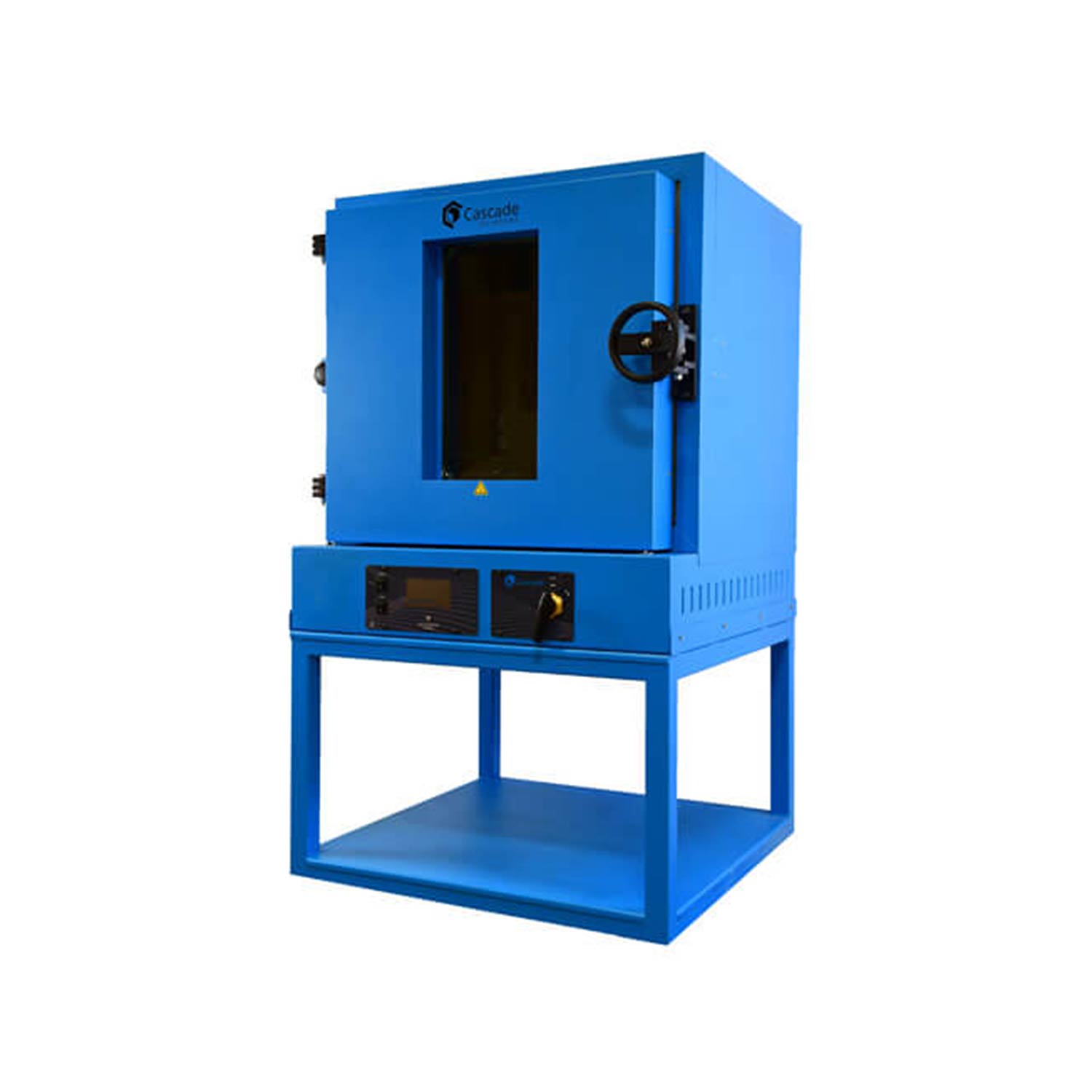

CVO-10 Vacuum Oven

16,636.88$

Cascade Vacuum Purge Ovens are a high quality, scalable laboratory oven solution.
Vac purge ovens are excellent for outgassing, removing water or other residual solvents, drying products, baking out, and a host of other applications.

SKU: 4201247 Category: Tag:

Description

Power
240, 1ph,  10 FLA, NEMA 6-15R 230V Outlet

Chamber size
9.3 Cubic Ft

Chamber material
Stainless Steel

Chamber dimensions
28”W x 24”H x 24”D

Port
Rear KF-25 port 1″ diameter

Vacuum
KF-25, 1″ lines, 1″ Valve

Vent
1/2″ barb

Certified
NRTL

Controller
PID controller /Analog knobs

Display

Stability
/-0.4 °F at 105 °F

Max temperature
25 °F above ambient temperature to 160 °F

Temperature Uniformity
/-1.5 °F at 105 °F

Unit weight
663 lbs

Shipping weight
775 lbs

Unit dimension
42.3”W x 43”D x 42.3”H 67.6”H with stand

Shipping dimensions
50 x 50 x 50″

NOTE
Will Not Fit Through Standard 36″W Doorway

Made in the USA
Perfect for removing water or residual solvents
PID controller included
Multiple sizes and types available
